Product Application:
1.Die cavity of molds2.Bearings and other parts3.Failure analysis of pressure vessel, steam generator and other equipment4.Heavy work piece5.The installed machinery and permanently assembled parts6.Testing surface of a small hollow space7.Material identification in the warehouse of metallic materials8.Rapid testing in large range and multi-measuring areas for large-scale work piece.
Our advantage
1.We have our own factory with competitive price
2.Quality is our culture
3.time is gold,we have professional team produce the product with short time.
4.with us your money in safe
JH300 leeb hardness tester
Measuring range
HLD (170-960),HRC (17.9-69.5),HB (19-683),HV (80-1042),HS (30.6-102.6),HRA(59.1-88),HRB (13.5-101.7)
Impact Directions
Up, down, horizontal, slanting up, slanting down
Measuring Materials
Steel and cast steel, alloy tool steel, stainless steel, gray cast iron, nodular cast iron, cast aluminum alloy, copper zinc alloys (brass), an alloy of copper and tin, copper (bronze), forged steel
Standards
ASTM A956,DIN50156-1,GB/T17394-1998
Hardness Scales
HL,HB,HRB,HRC,HRA,HV,HS.
Tensile Strenght
374 to 2652 N/m 2
Display
128*64 digital matrix LCD
Memory
600 groups max.(relative to impact times 32~1)
Work Voltage
9V/500mA.
Main Features
1.Large screen(128×64 dot matrix LCD), showing all functions and parameters.2.Test at any angle, even upside down.
3.Support "forged steel (Steel)" material, when using the D/DC impact device test "forged" sample, can read HB value directly, without the need for manual checking table.4.Wide measuring range. It can measure the hardness of all metallic materials. Direct display of hardness scales HRB, HRC, HRA, HV, HB, HS, HL and three types of strength values immediately.5.Seven impact devices are available for special application. Automatically identify the type of impact devices.6.Large capacity memory could store 600 groups (Relative to average times32~1 ) information including single measured value, mean value, testing data, impact direction, impact times, material and hardness scale etc.7.Upper and lower limit can be preset. It will alarm automatically when the result value exceeding the limit.8.Battery information indicates the rest capacity of the battery and the charge status.9.User calibration function.10.USB port with the PC humanity multi-functions data proceeding software.11.Original imported high speed thermal printer support the immediate printing function. It can save data permanently.12.NI-MH rechargeable battery as the power source. Charge circuit integrated inside
Packing & Delivery
Standard configuration
Item
Name
QTY
1
Main Unit
1
2
D type impact device
1
3
Standard test block
1
4
Cleaning brush (I)
1
5
Small support ring
1
6
Battery Charger
1
7
Manual
1
8
Data Pro software
1
9
Communication cable
1
10
Instrument case
1
Product Description:
Digital Leeb hardness tester is developed Leeb hardness measurement principle based on the internationally popular metal material hardness tester. It has high accuracy, small size, easy to operate, and a wide range of measurement, especially for large, heavy-duty malleable pieces, example: roll turbine shaft, and applied to the components already installed and can not be demolished, for example, site hardness testing of pressure vessels, turbine units and other equipment.
Leeb hardness tester is widely used in petrochemical, aerospace, electric power, gas, automotive, shipbuilding, railways, machinery manufacturing and other industries.
Product features
1.Based on the principle of measuring the Leeb hardness, it can be measured in a variety of metal materials.
2.Easily switch to the hardness of all formats (HL,HB,HRB,HRC,HRA,HV,HS), parallel conversion of the measured value of the hardness
3.Using the big screen 128 x 64 graphics dot matrix LCD display, information is rich, intuitive.
4.With bright backlight display, easy to use in the light gray environment.
5.A host can be equipped with 7 kinds of different impact device, automatic identification of impact device type. No need to re calibrate the replacement.
Main application
1.Installed mechanical or permanent assembly parts.
2.Heavy work piece.
3.Invalidation analysis of pressure vessel, steam turbine generator set and its equipment.
4.Test space is very narrow artifacts
5.Bearings and other parts.
6.Requires a formal original record of the test results.
7.Material distinction of metal materials.
8.Rapid test of multiple measurement sites in large scale workpiece.
Working condition
Working temperature: －10℃～＋55℃;
Storage temperature: －20℃～＋75℃;
The relative humidity is less than 90%;
There is no vibration, no strong magnetic field, no corrosive medium and serious dust in the surrounding environment.
Product Details:
Display All English display, menu operation, simple and convenient operation. OLED LCD screen, easy to use in any environment.
Measurement function One host can be equipped with 7 different impact devices, no need to recalibrate when replacing, and automatically identify the type of impact device.
Data storage It can store 48~350 groups (impact times 32~1) single measurement value, average value, measurement date, impact direction, number of times, material, hardness scale and other information.
Alarm output The upper and lower limits of the hardness value can be set in advance, and the alarm will be automatically alarmed when the range is exceeded, which is convenient for users to test in batches.
Calibration With indication software calibration function.
Battery The power supply adopts 2 AA (No. 5) ordinary alkaline batteries, which can work continuously for no less than 100 hours. It has power-saving functions such as automatic sleep and automatic shutdown.
Product Description
HR-150A double handle type is another fundamental model of all rockwell types,it is favored by most customers mainly because of its mechanical and manual testing mode,which is durable and stable.Without electrical power supply,and with simple designed appearance and single handle,it is very easy to operate,as well as economical and practical performance and wide using scope.There is no parameter distinguish between single and double handle type,it only depends on the user's operation habit and personal hobby.
Using Scopes:
● Rockwell Hardness Testing of Ferrous Metal,Non-ferrous Metalt and Non-metallic Material.
● Hardened and surface hardened steel, hardening and tempering steel, tempered steel, cold and hard casting parts, forging parts, hard alloy steel, aluminum alloy,bearing steel, carburized steel sheet, etc.
Feature:
● Easy to use, and the test force can be applied and unloaded by a handle;
● Dial direct reading, HRA, HRB, HRC scale;
● Other scales of Rockwell are optional;
● High precision of indication, easy installation and low failure rate
Rockwell Hardness Range:
Rockwell hardness scale
Hardness symbol
Indenter type
Initial l force Fo (kg)
main force F1 (kg)
Total force F(KG)
Constant
Scope of application
Examples of application
A
HRA
diamond cone indenter
10
50
60
100
20-88HRA
Hard metal and hard alloy
B
HRB
1.5875mmball indenter
10
90
100
130
20-100HRB
Nonferrous metal and soft metal
C
HRC
diamond cone indenter
10
140
150
100
20-70HRC
heat treatment steel
D
HRD
diamond cone indenter
10
90
100
100
40-77HRD
Surface hardened steel
F
HRF
1.5875mmball indenter
10
50
60
130
60-100HRF
Nonferrous metal
G
HRG
1.5875mmball indenter
10
140
150
130
30-94HRG
iron, copper nickel, zinc alloy
● A scale: It is suitable for testing the metal more than 70HRC, such as tungsten carbide, hard alloy as well as the hard sheet material and the hardening material on the surface layer.
● B scale: It is suitable for testing non-ferrous metals and alloys, annealing steel or soft or medium hardness of materials.
● C scale: It is suitable for testing the carbon steel, tool steel and alloy steel.
Model
HR-150A
Initial Testing Force
10kgf(98.07N)
Hardness Resolution
0.5HR
Testing Force
60kgf(588.4N) 100kgf(980.7N) 150kgf(1471N)
Rockwell Scale
HRA,HRB,HRC,HRD,HRE,HRF,HRG,HRH,HRK
Testing Range
HRA:20-88 HRB:20-100 HRC:20-70 HRD:40-77
HRF:60-100 HRG:30-94 HRH:80-100 HRK:40-100
DataDisplay mode
Dial
Operate Mode
Double Handle
Carried Standard
GB/T230.1/.2 National Standard,ISO 6508-2,ASTM E18
Max Height of Specimens
170mm
Max depth of specimens
135mm
Dimension (cm)
65*40*81(L*W*H)
Packing Weight
80KG
TD8620 Hand-held Digital Tesla Meter Tesla Meter Permanent Magnet Gauss Handheld Digital Magnetic Flux Surface Field Test
Product Introduce
The design of TD8620 hand-held digital Tesla meter follows the IEC-61010-1 safety standard, and conforms to the national verification regulation of JJG242-1995 Tesla meter.
TD8620 hand-held digital Tesla meter adopts not only the high-sensitivity Hall sensor and high-resolution A / D conversion chip,but also the popular single-chip computer technology and digital filtering technology .
It has the advantages of high sensitivity,stable reading, low power consumption , and light weight.
The measurement range is 0-2000 Mt, and the basic accuracy is ±1%.
It has the characteristics of automatic zero, automatic measurement range, keeping of maximum / minimum
values, etc.
Product Feature
●The product consists of three measurement accuracies, +/-1%, +/-2%, +/-5%, with different grades for different prices.(The product for this order 's accuracy is +/-5% )● Dedicated to measuring the surface flux density of permanent magnet materials B, range: 0 to 2400 mT
● The value can be switched by one button: mT (mite) or G (gauss).
● With automatic zero and auto range, and maximum hold function.
● With backlight adjustment, power display and automatic shutdown function.
● Light weight and low power consumption.
Technical specifications of Level 5
Range :200 mT 2000 mT
Range of measurements:0 ~ 120%
Minimum resolution :10uT
Basic accuracy :0~1000mT:±2% ,1000mT~2400mT:±5%
Number of digits displayed :4 bits (Decimal)Power supply :one 9 V battery(battery is not included)Working temperature :0℃ ~ 50℃
Storage temperature :-20℃ ~ 50℃
Shape size :160 mm × 80 mm × 32 mm
Device weight :260 g (including batteries and wires)
Hall probe Longitudinal Hall probe, wire length is about 2 meters
Packing List:
Tesla meter*1
Probe*1
Battery*1 9V battery (Not included)
Product manual*1
Product certificate of conformity*1
Packaging box*1
Gauss/Tesla Meter with High Precision Probe & Auto Range Recording 0-20000Gs N/S Polarity Identification, Magnetic Field Tester for Residual Magnetism & Nondestructive Testing.

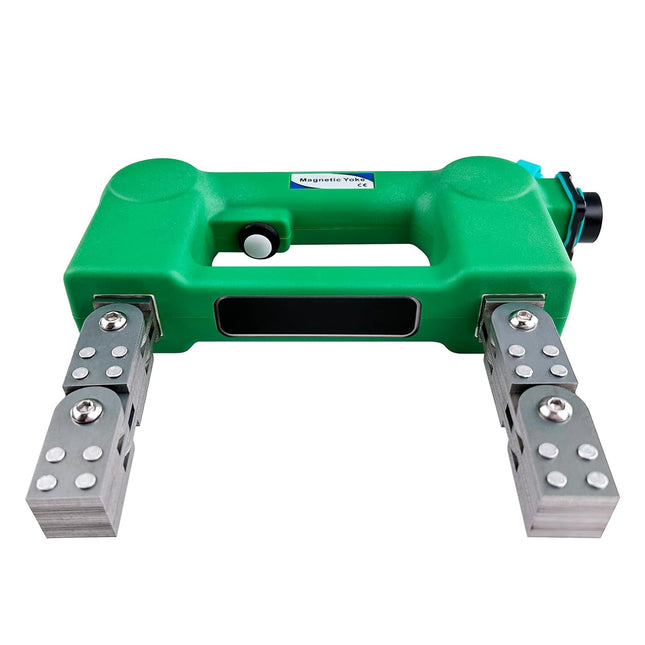

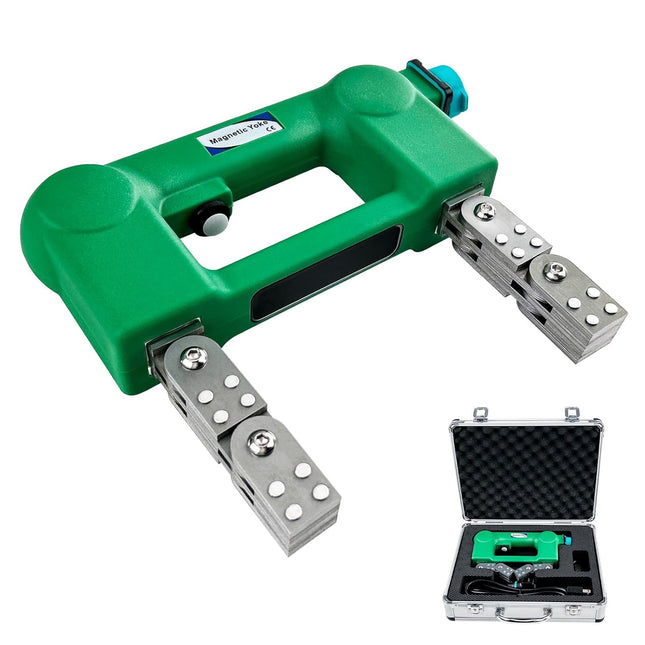

The GOYOJO Magnetic Yoke Flaw Detector is a precision tool designed to identify surface and near-surface defects in materials. It excels at detecting issues like cracks, voids, inclusions, and irregularities, making it an essential asset for quality control and safety assurance.
Specifications:
Brand: GOYOJO
Model: Y-1
Electrode spacing: 0 to 210mm
Maximum current: 2.8A
Main function: AC magnetization (direct AC power supply)
Weight: 2.2kg (4.85 pounds)
Working temperature: -10°C to +40°C (14°F to 104°F)
Storage temperature: -20°C to 50°C (-4°F to 122°F)
Relative humidity: No condensation, less than 80%
Operation temperature rise: Less than 18°C (32.4°F)
Duty cycle: Greater than 50%
Sensitivity: Clearly displays type A1 standard specimen with 15/50 grooves.
Minimum AC boost: Greater than 4.5kg (10 pounds, 44N), maximum AC boost: 7kg (15.43 pounds, 68.6N)
DT-156 Dual Technology Features Automatic Selection of Magnetic Induction or Eddy Current Measurement TechniquesNon-magnetic coatings (e.g. paint, zinc) on steel Insulating coatings (e.g. paint) on no-ferrous metals No-ferrous metals coatings on insulating substrates Menu operation systemTwo working modes: DIRECT and GROUP modeOne point calibration, two points calibration and basic calibration easily Delete single readings and all group readings easilyLow battery, error indication
Features
DT-156
Non-magnetic coatings (e.g. paint, zinc) on steel
*
Insulating coatings (e.g. paint) on no-ferrous metals
*
No-ferrous metals coatings on insulating substrates
*
Menu operation system
*
Two measuring modes: CONTINUE and SINGLE mode
*
Two working modes: DIRECT and GROUP mode
*
Statistic Display: AVG, MAX, MIN, NO., S.DEV
*
One point calibration, two points calibration and basic calibration easily
*
Memory for 400 readings (80 DIRECT and 320 GROUP readings)
*
Delete single readings and all group readings easily
*
High alarm and Low alarm for all working modes
*
Low battery, error indication
*
USB interface for PC software
*
Size (H x W x D): 113.5mm x 54mm x 27mmWeight: 110g
Specifications
DT-156
Sensor probe
F
N
Working principle
magnetic induction
Eddy current principle
Measuring range
0~1250um
0~1250um
Guaranteed tolerance (of reading)
(+/- 3%+1)um
(+/- 3%+1.5)um
Repeatability
(+/- 1%+1)um
(+/- 1%+1)um
Low range Precision
0.1um
0.1um
Minimum curvature radius
1.5mm
3mm
Diameter of Minimum area
7mm
5mm
Basic critical thickness
0.5mm
0.3mm

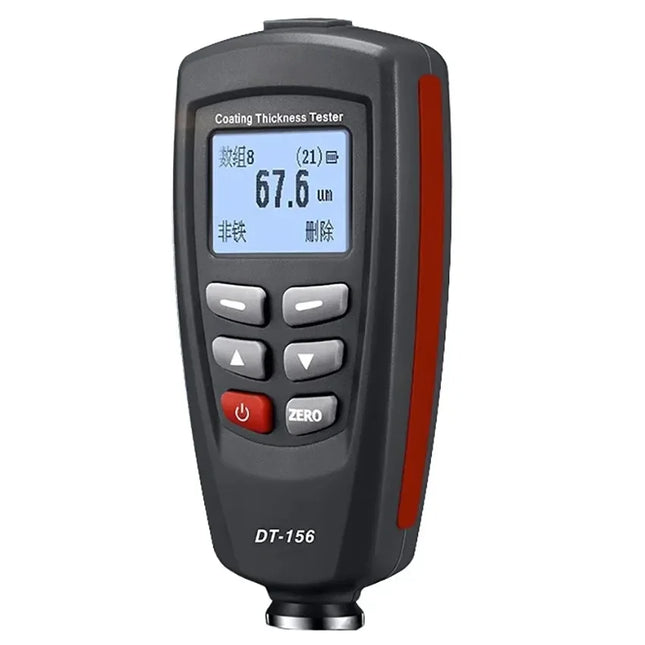

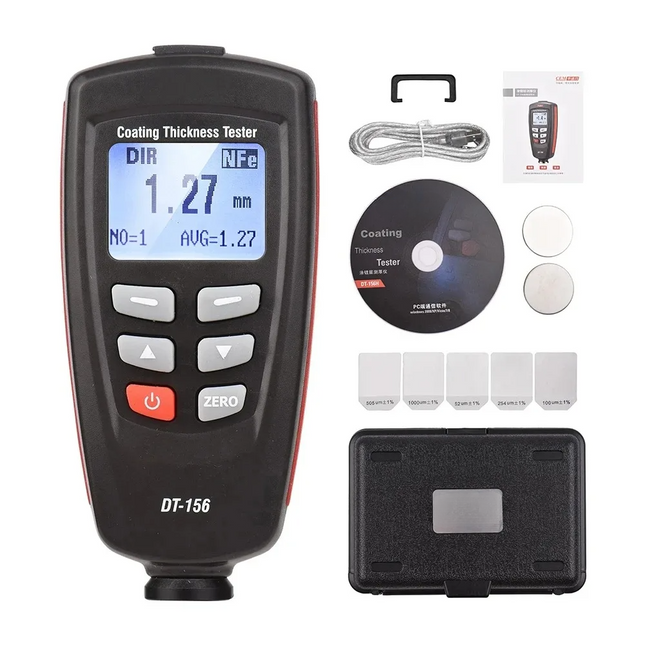

Coating Thickness Meter DT-156/156HDual Technology Features Automatic Selection of Magnetic Induction or Eddy Current Measurement TechniquesNon-magnetic coatings (e.g. paint, zinc) on steel Insulating coatings (e.g. paint) on no-ferrous metals No-ferrous metals coatings on insulating substrates Menu operation systemTwo working modes: DIRECT and GROUP modeOne point calibration, two points calibration and basic calibration easily Delete single readings and all group readings easilyLow battery, error indication
Features
DT-156
DT-156H
Non-magnetic coatings (e.g. paint, zinc) on steel
*
*
Insulating coatings (e.g. paint) on no-ferrous metals
*
*
No-ferrous metals coatings on insulating substrates
*
*
Menu operation system
*
*
Two measuring modes: CONTINUE and SINGLE mode
*
Two working modes: DIRECT and GROUP mode
*
*
Statistic Display: AVG, MAX, MIN, NO., S.DEV
*
One point calibration, two points calibration and basic calibration easily
*
*
Memory for 400 readings (80 DIRECT and 320 GROUP readings)
*
Memory for 1500 readings ( 30 GROUP readings)
*
Delete single readings and all group readings easily
*
*
High alarm and Low alarm for all working modes
*
Low battery, error indication
*
*
USB interface for PC software
*
*
4 levels of battery indication
*
Error indication
*
Easily adapt to lighting conditions with 8 levels of backlight
*
Size (H x W x D): 113.5mm x 54mm x 27mmWeight: 110g
Specifications
DT-156
DT-156H
Sensor probe
F
N
F
N
Working principle
magnetic induction
Eddy current principle
magnetic induction
Eddy current principle
Measuring range
0~1250um
0~1250um
0~1350um
0~1350um
Guaranteed tolerance (of reading)
(+/- 3%+1)um
(+/- 3%+1.5)um
(+/- 2.5%+2)um
(+/- 2.5%+2)um
Repeatability
(+/- 1%+1)um
(+/- 1%+1)um
(+/- 1%+1)um
(+/- 1%+1)um
Low range Precision
0.1um
0.1um
0.1um
0.1um
Minimum curvature radius
1.5mm
3mm
1.5mm
3mm
Diameter of Minimum area
7mm
5mm
7mm
5mm
Basic critical thickness
0.5mm
0.3mm
0.5mm
0.3mm
