Description

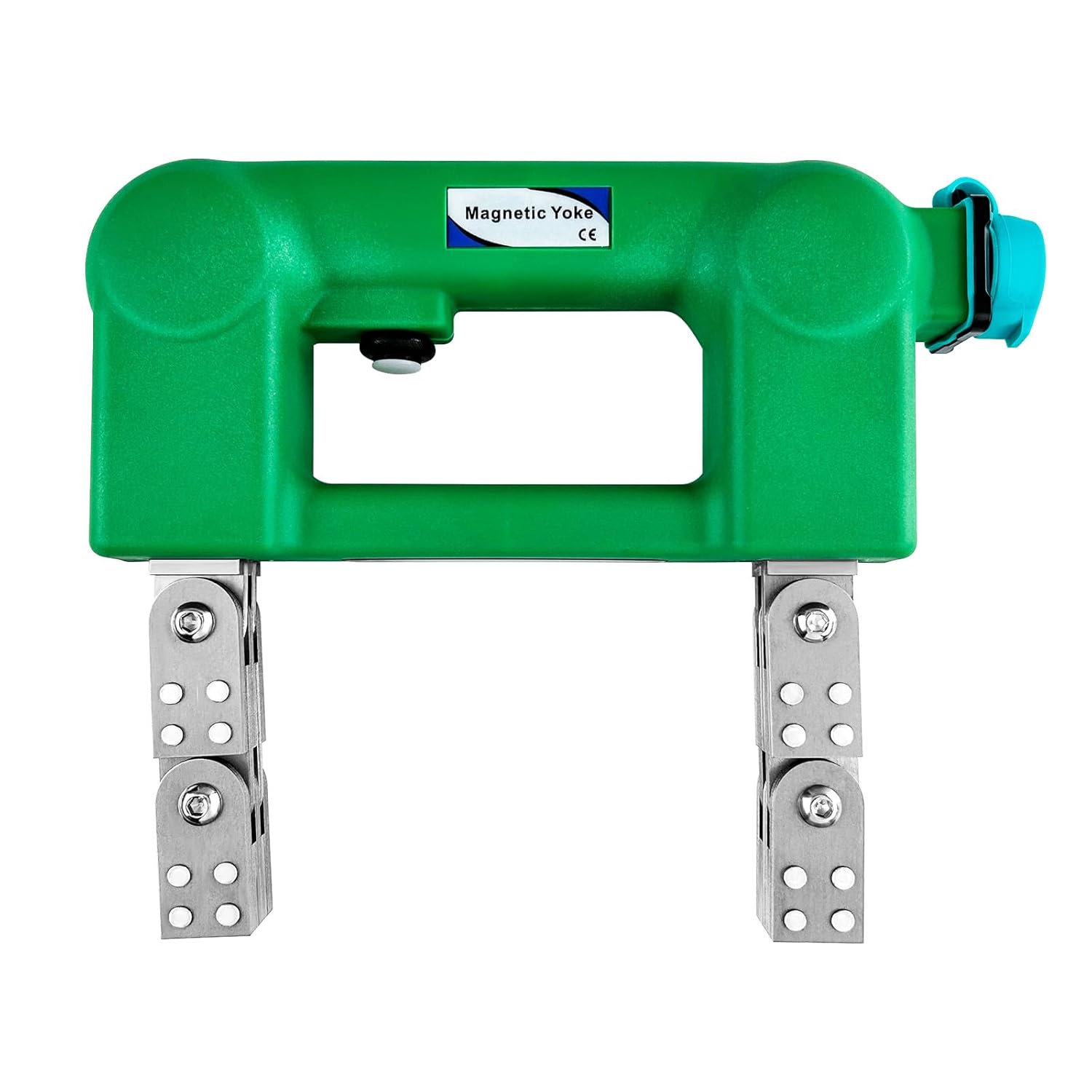

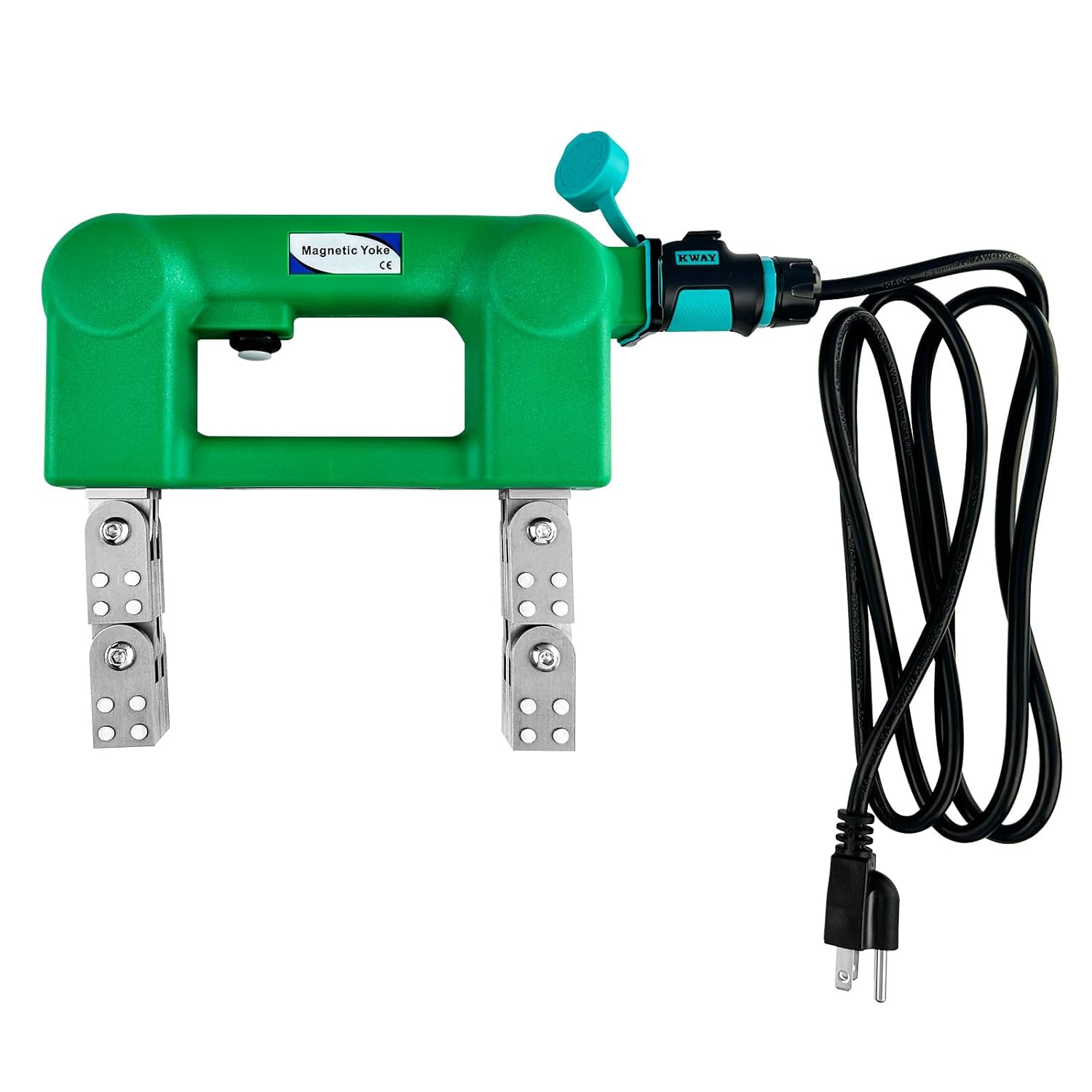

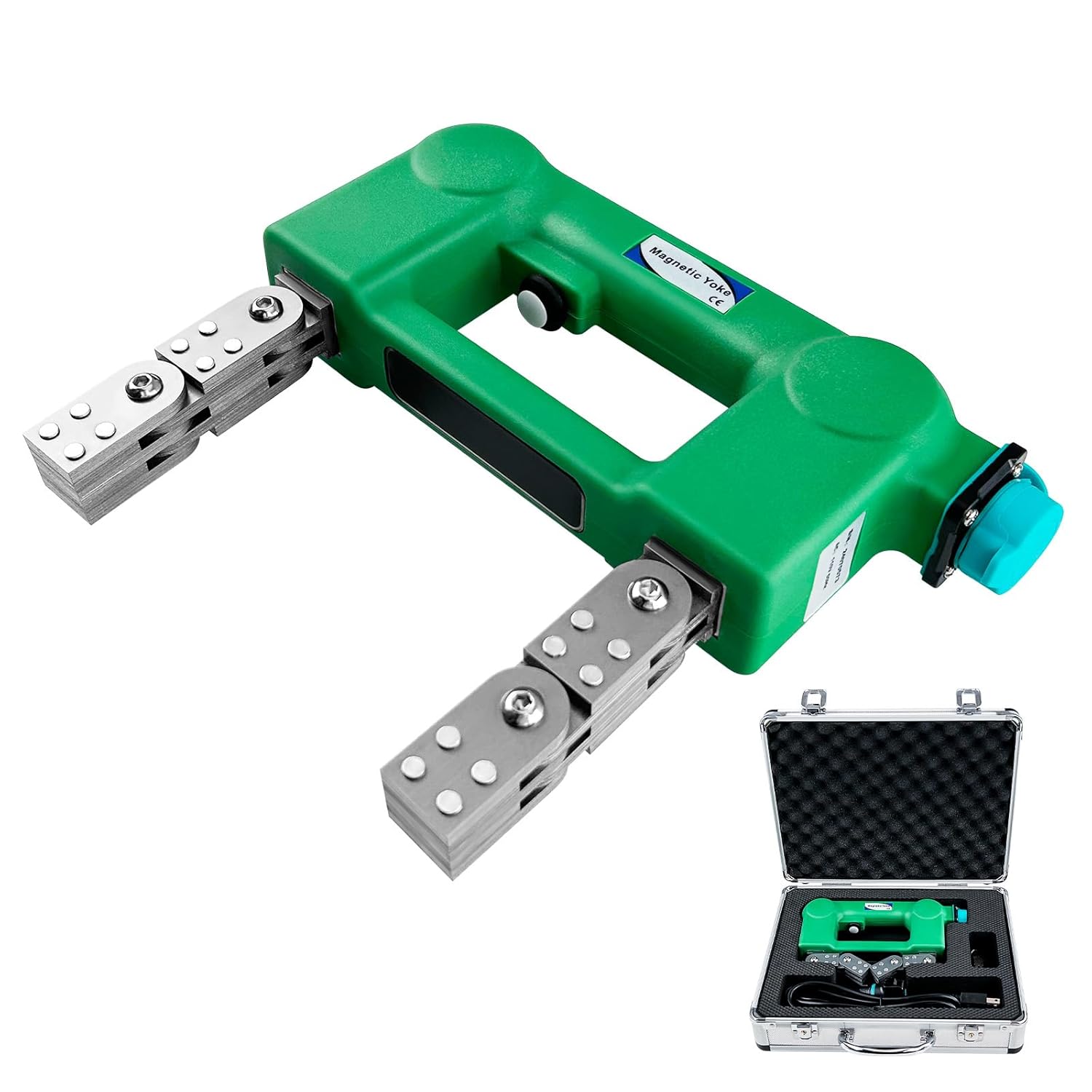

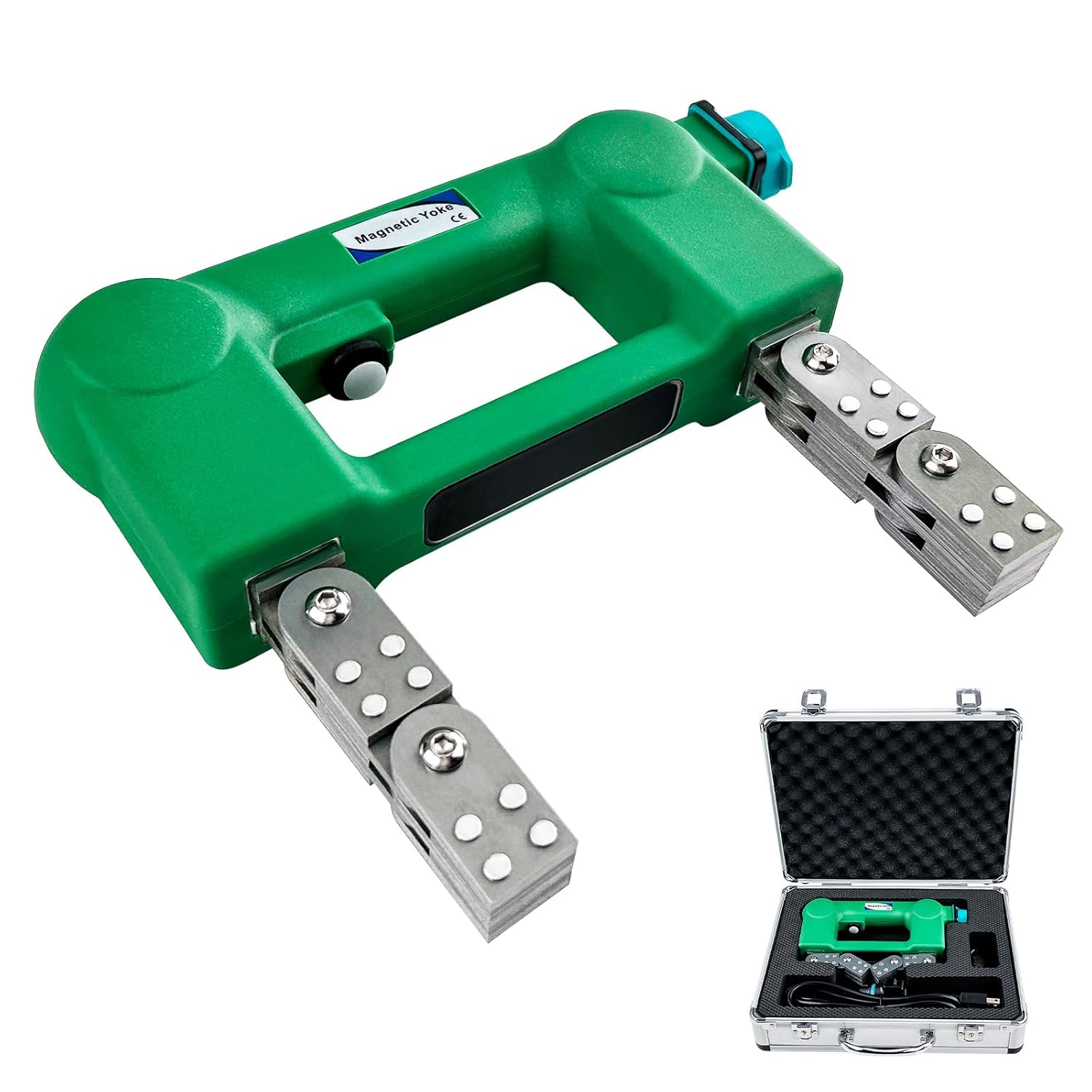

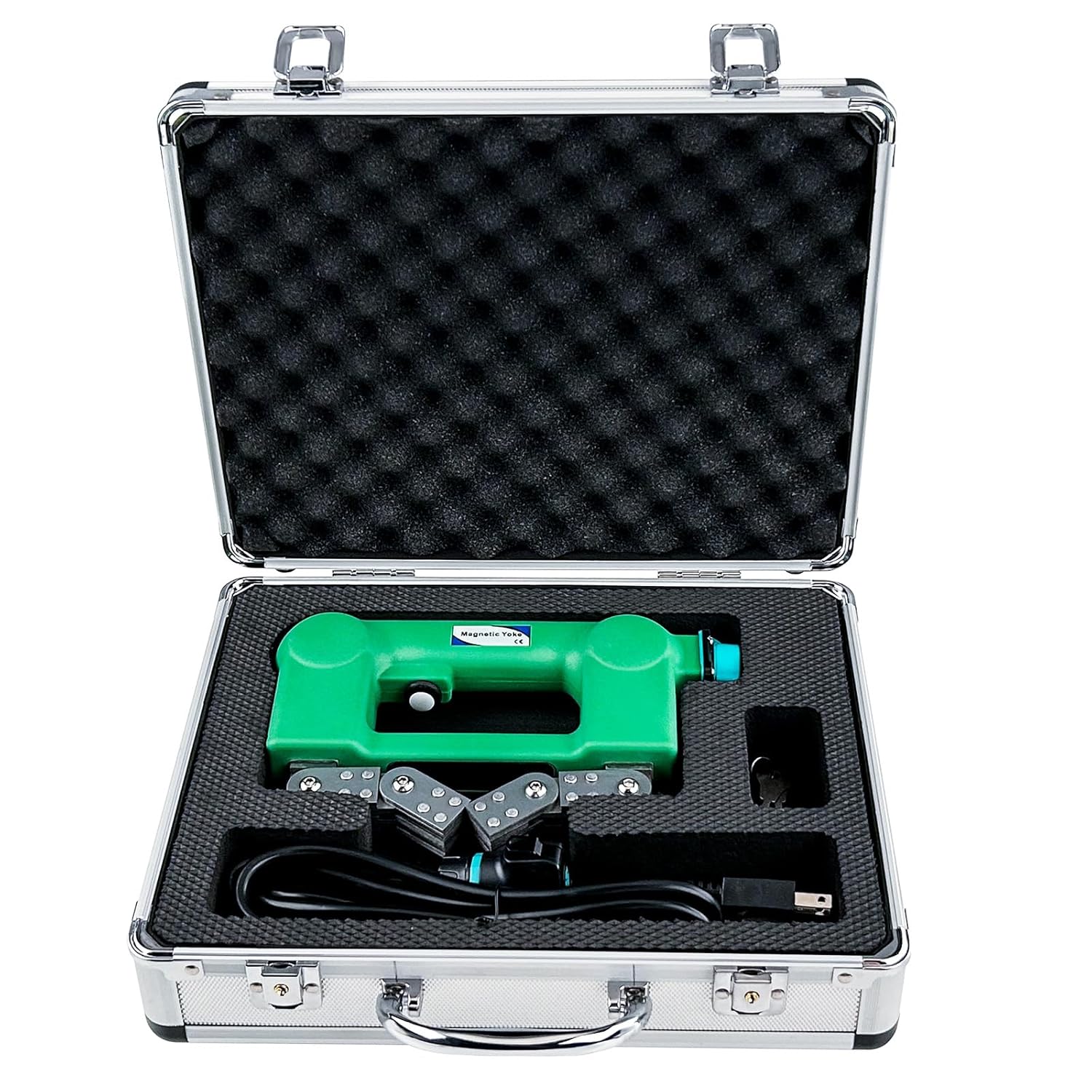

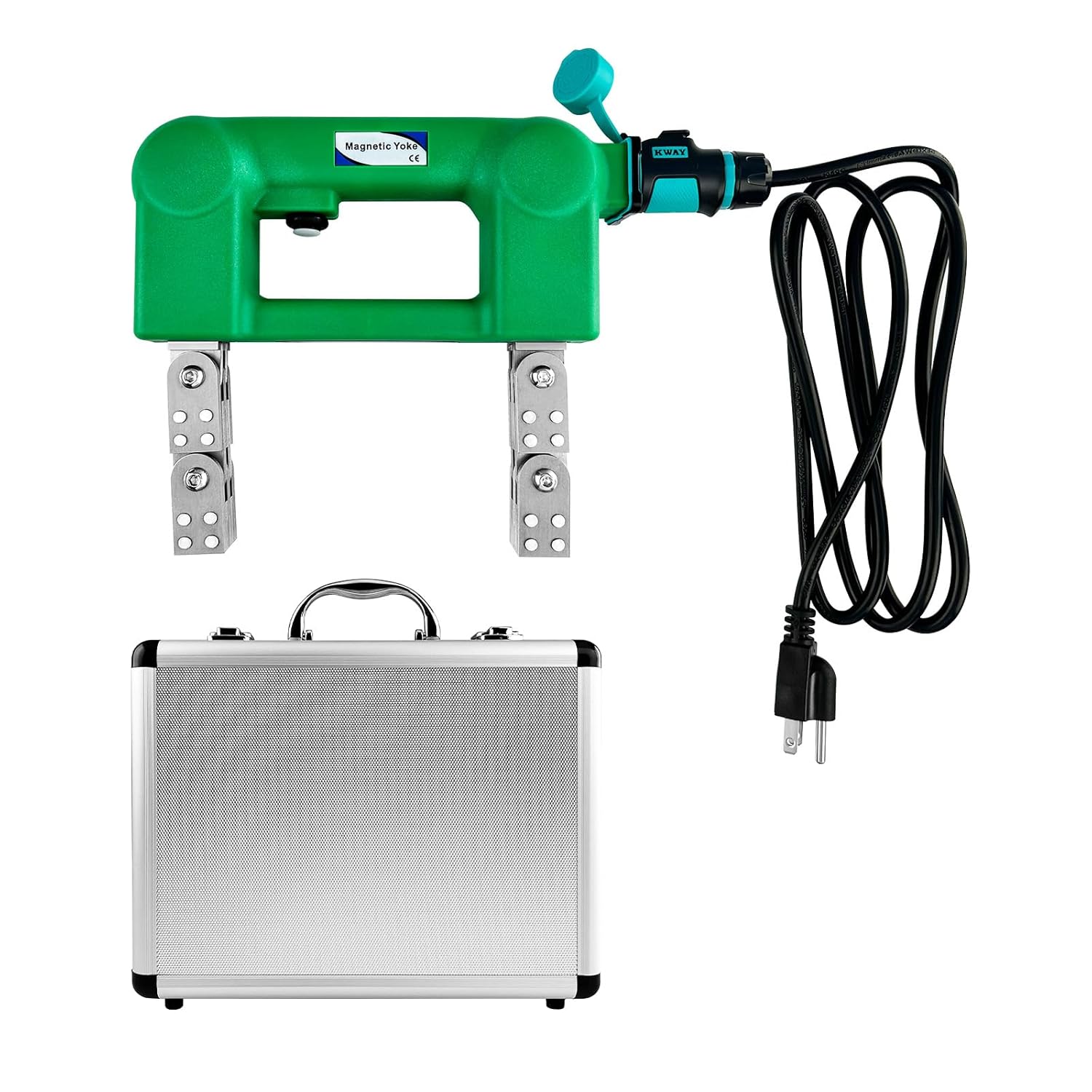

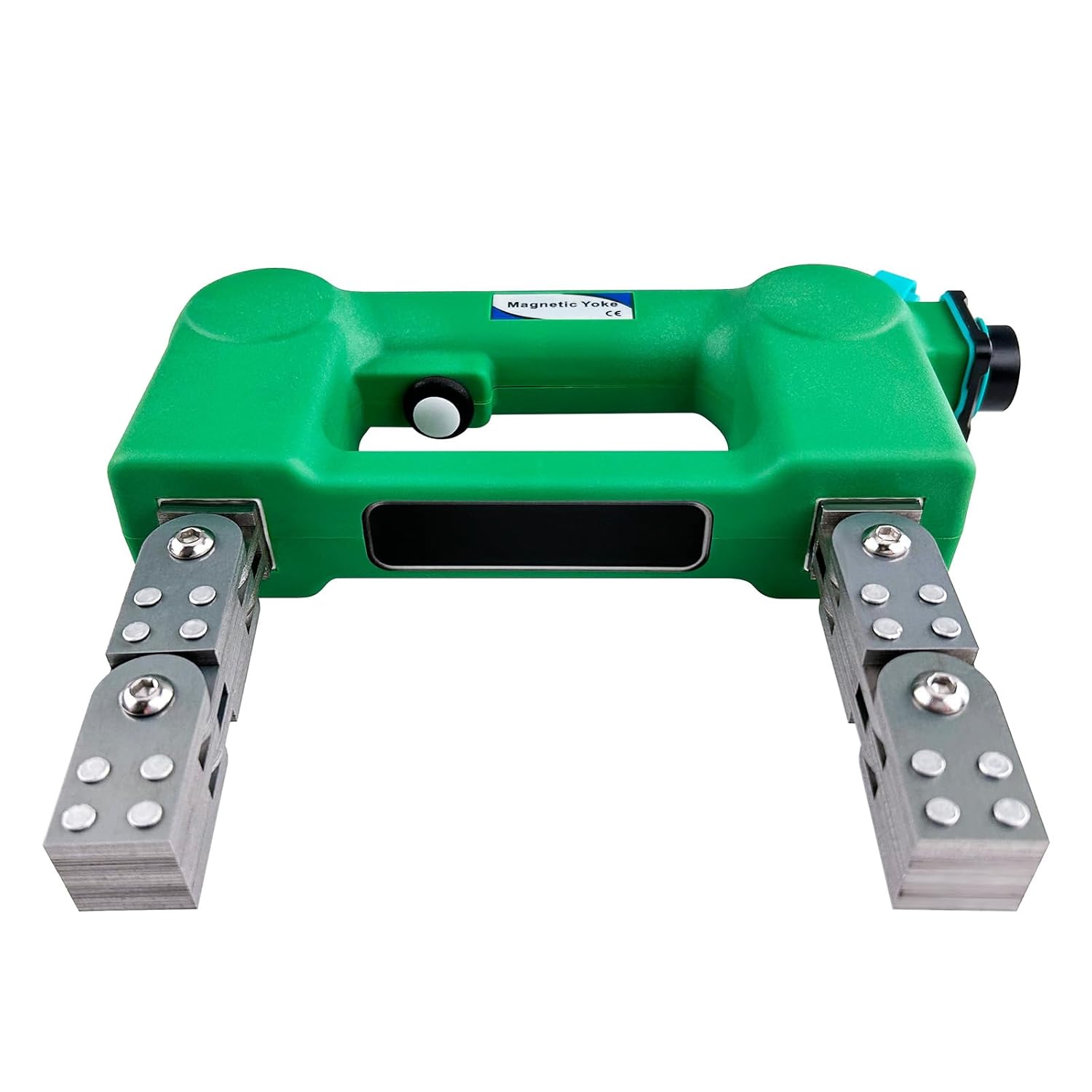

The GOYOJO Magnetic Yoke Flaw Detector is a precision tool designed to identify surface and near-surface defects in materials. It excels at detecting issues like cracks, voids, inclusions, and irregularities, making it an essential asset for quality control and safety assurance.


Specifications:

  • Brand: GOYOJO
  • Model: Y-1
  • Electrode spacing: 0 to 210mm
  • Maximum current: 2.8A
  • Main function: AC magnetization (direct AC power supply)
  • Weight: 2.2kg (4.85 pounds)
  • Working temperature: -10°C to +40°C (14°F to 104°F)
  • Storage temperature: -20°C to 50°C (-4°F to 122°F)
  • Relative humidity: No condensation, less than 80%
  • Operation temperature rise: Less than 18°C (32.4°F)
  • Duty cycle: Greater than 50%
  • Sensitivity: Clearly displays type A1 standard specimen with 15/50 grooves.
  • Minimum AC boost: Greater than 4.5kg (10 pounds, 44N), maximum AC boost: 7kg (15.43 pounds, 68.6N)

GOYOJO Magnetic Yoke Flaw Detector for Crack Inspection – Magnetic Particle Testing (MT) Equipment

Product form

The GOYOJO Magnetic Yoke Flaw Detector is a precision tool designed to identify surface and near-surface defects in materials. It... Read more

SKU: Y-1

Delivery in 7-15 days

$419.00 $389.00

    • Guaranteed secure & safe checkout.

      stripe

    Description


    The GOYOJO Magnetic Yoke Flaw Detector is a precision tool designed to identify surface and near-surface defects in materials. It excels at detecting issues like cracks, voids, inclusions, and irregularities, making it an essential asset for quality control and safety assurance.


    Specifications:

    • Brand: GOYOJO
    • Model: Y-1
    • Electrode spacing: 0 to 210mm
    • Maximum current: 2.8A
    • Main function: AC magnetization (direct AC power supply)
    • Weight: 2.2kg (4.85 pounds)
    • Working temperature: -10°C to +40°C (14°F to 104°F)
    • Storage temperature: -20°C to 50°C (-4°F to 122°F)
    • Relative humidity: No condensation, less than 80%
    • Operation temperature rise: Less than 18°C (32.4°F)
    • Duty cycle: Greater than 50%
    • Sensitivity: Clearly displays type A1 standard specimen with 15/50 grooves.
    • Minimum AC boost: Greater than 4.5kg (10 pounds, 44N), maximum AC boost: 7kg (15.43 pounds, 68.6N)
