Hardness Tester

7 products

  • GOYOJO 934-1S Portable Hardness Tester

    Delivery in 7-10 days

    $99.00

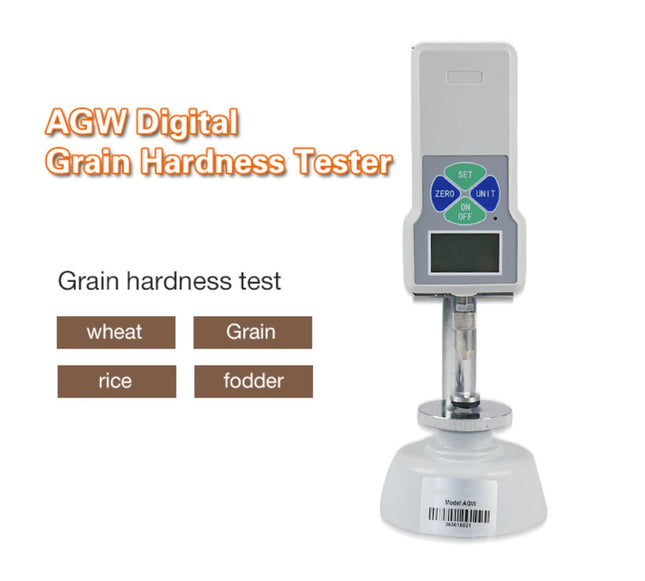

  • GOYOJO Digital Grain Hardness Meter

    GOYOJO Digital Grain Hardness Meter

    Delivery in 7-10 days

    Product overview AGW digital grain hardness tester is used for scientific research and teaching of agricultural,especially used for testing the hardness of grain(wheat,rice).With the characteristic of high accuracy, strong indication, high resolution, easy operation, durable and reliable.With its beautiful outlook, it can be measured by hand on site, it also can be tested in the workbench in the lab.Product features ● Digital display, easy for reading and high accuracy● Light weight, small size and easy for carrying● Two units:Kg and N switch into each other● The battery has short circuit,leakage and overload protection, adopt 3.7V Lithium battery power supply, will shut down automatically without operation within 10 minutes● Two measuring modes:Real time and Peak mode.   Model AGW-20   Max. Load   20kg 196N   Load division value   0.01kg 0.1N Load cell Inner Accuracy ±2% Power 3.7V   Lithium battery Charger time 4~6 hours Battery Continuous use                                      About 15 hours Battery life ≥300 times Charger                   Input:AC 100-240V 50/60HZ  Output:DC 5V 1000mA Working temperature 5℃~35℃ Transport temperature -10℃~60℃ Relative humidity 15%~80%RH Working environment No source and corrosive media around

    Delivery in 7-10 days

    $207.00

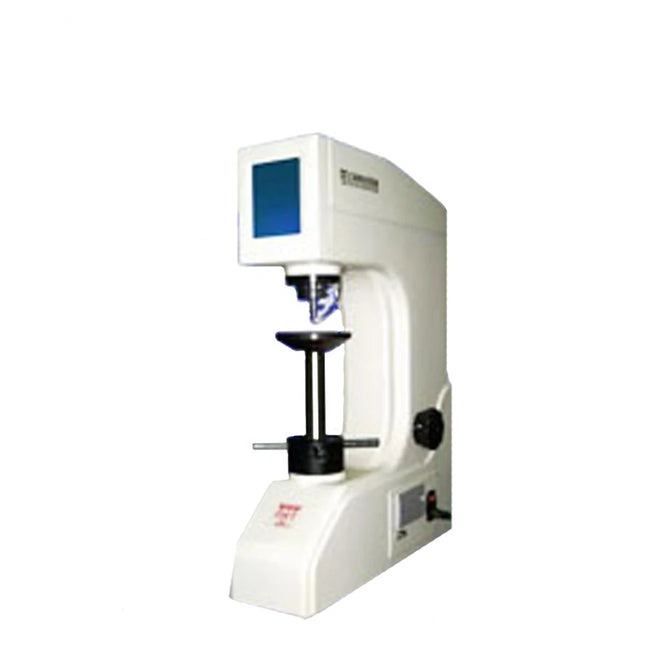

  • GOYOJO HR-150A Manual Metal Micro Hardness Tester

    GOYOJO HR-150A Manual Metal Micro Hardness Tester

    Delivery in 7-10 days

    Product Description   HR-150A double handle type is another fundamental model of all rockwell types,it is favored by most customers mainly because of its mechanical and manual testing mode,which is durable and stable.Without electrical power supply,and with simple designed appearance and single handle,it is very easy to operate,as well as economical and practical performance and wide using scope.There is no parameter distinguish between single and double handle type,it only depends on the user's operation habit and personal hobby.   Using Scopes: ● Rockwell Hardness Testing of Ferrous Metal,Non-ferrous Metalt and Non-metallic Material. ● Hardened and surface hardened steel, hardening and tempering steel, tempered steel, cold and hard casting parts, forging parts, hard alloy steel, aluminum alloy,bearing steel, carburized steel sheet, etc.   Feature: ● Easy to use, and the test force can be applied and unloaded by a handle; ● Dial direct reading, HRA, HRB, HRC scale; ● Other scales of Rockwell are optional; ● High precision of indication, easy installation and low failure rate   Rockwell Hardness Range: Rockwell hardness scale Hardness symbol   Indenter type Initial l force Fo (kg) main force F1 (kg) Total force F(KG) Constant Scope of application Examples of application A HRA diamond cone indenter 10 50 60 100 20-88HRA Hard metal and hard alloy B HRB 1.5875mmball indenter 10 90 100 130 20-100HRB Nonferrous metal and soft metal C HRC diamond cone indenter 10 140 150 100 20-70HRC heat treatment steel D HRD diamond cone indenter 10 90 100 100 40-77HRD Surface hardened steel F HRF 1.5875mmball indenter 10 50 60 130 60-100HRF Nonferrous metal G HRG 1.5875mmball indenter 10 140 150 130 30-94HRG iron, copper nickel, zinc alloy   ● A scale: It is suitable for testing the metal more than 70HRC, such as tungsten carbide, hard alloy as well as the hard sheet material and the hardening material on the surface layer. ● B scale: It is suitable for testing non-ferrous metals and alloys, annealing steel or soft or medium hardness of materials. ● C scale: It is suitable for testing the carbon steel, tool steel and alloy steel.     Model HR-150A Initial Testing Force 10kgf(98.07N) Hardness Resolution 0.5HR Testing Force 60kgf(588.4N)   100kgf(980.7N)    150kgf(1471N) Rockwell Scale HRA,HRB,HRC,HRD,HRE,HRF,HRG,HRH,HRK    Testing Range HRA:20-88   HRB:20-100  HRC:20-70  HRD:40-77 HRF:60-100  HRG:30-94  HRH:80-100  HRK:40-100 DataDisplay mode Dial Operate Mode Double Handle Carried Standard GB/T230.1/.2 National Standard,ISO 6508-2,ASTM E18 Max Height of Specimens 170mm Max depth of specimens 135mm Dimension (cm) 65*40*81(L*W*H) Packing Weight 80KG

    Delivery in 7-10 days

    $528.99

  • GOYOJO JH300 Digital Leeb Hardness Tester

    GOYOJO JH300 Digital Leeb Hardness Tester

    Delivery in 7-10 days

    Product Application:  1.Die cavity of molds2.Bearings and other parts3.Failure analysis of pressure vessel, steam generator and other equipment4.Heavy work piece5.The installed machinery and permanently assembled parts6.Testing surface of a small hollow space7.Material identification in the warehouse of metallic materials8.Rapid testing in large range and multi-measuring areas for large-scale work piece. Our advantage 1.We have our own factory with competitive price 2.Quality is our culture 3.time is gold,we have professional team produce the product with short time. 4.with us your money in safe  JH300  leeb hardness tester       Measuring range HLD (170-960),HRC (17.9-69.5),HB (19-683),HV (80-1042),HS (30.6-102.6),HRA(59.1-88),HRB (13.5-101.7)     Impact Directions Up, down, horizontal, slanting up, slanting down     Measuring Materials Steel and cast steel, alloy tool steel, stainless steel, gray cast iron, nodular cast iron, cast aluminum alloy, copper zinc alloys (brass), an alloy of copper and tin, copper (bronze), forged steel     Standards ASTM A956,DIN50156-1,GB/T17394-1998     Hardness Scales HL,HB,HRB,HRC,HRA,HV,HS.     Tensile Strenght 374 to 2652 N/m 2     Display 128*64 digital matrix LCD     Memory 600 groups max.(relative to impact times 32~1)     Work Voltage 9V/500mA.       Main Features 1.Large screen(128×64 dot matrix LCD), showing all functions and parameters.2.Test at any angle, even upside down. 3.Support "forged steel (Steel)" material, when using the D/DC impact device test "forged" sample, can read HB value directly, without the need for manual checking table.4.Wide measuring range. It can measure the hardness of all metallic materials. Direct display of hardness scales HRB, HRC, HRA, HV, HB, HS, HL and three types of strength values immediately.5.Seven impact devices are available for special application. Automatically identify the type of impact devices.6.Large capacity memory could store 600 groups (Relative to average times32~1 ) information including single measured value, mean value, testing data, impact direction, impact times, material and hardness scale etc.7.Upper and lower limit can be preset. It will alarm automatically when the result value exceeding the limit.8.Battery information indicates the rest capacity of the battery and the charge status.9.User calibration function.10.USB port with the PC humanity multi-functions data proceeding software.11.Original imported high speed thermal printer support the immediate printing function. It can save data permanently.12.NI-MH rechargeable battery as the power source. Charge circuit integrated inside Packing & Delivery Standard configuration Item Name QTY 1 Main Unit 1 2 D type impact device 1 3 Standard test block 1 4 Cleaning brush (I) 1 5 Small support ring 1 6 Battery Charger 1 7 Manual 1 8 Data Pro software 1 9 Communication cable 1 10 Instrument case 1

    Delivery in 7-10 days

    $220.00

  • GOYOJO Leeb Hardness Tester with D Type Impact Device

    Delivery in 7-10 days

    $99.00

  • GOYOJO Portable Leeb Hardness Tester

    GOYOJO Portable Leeb Hardness Tester

    Delivery in 7-10 days

    Product Description: Digital Leeb hardness tester is developed Leeb hardness measurement principle based on the internationally popular metal material hardness tester. It has high accuracy, small size, easy to operate, and a wide range of measurement, especially for large, heavy-duty malleable pieces, example: roll turbine shaft, and applied to the components already installed and can not be demolished, for example, site hardness testing of pressure vessels, turbine units and other equipment. Leeb hardness tester is widely used in petrochemical, aerospace, electric power, gas, automotive, shipbuilding, railways, machinery manufacturing and other industries.   Product features 1.Based on the principle of measuring the Leeb hardness, it can be measured in a variety of metal materials. 2.Easily switch to the hardness of all formats (HL,HB,HRB,HRC,HRA,HV,HS), parallel conversion of the measured value of the hardness 3.Using the big screen 128 x 64 graphics dot matrix LCD display, information is rich, intuitive. 4.With bright backlight display, easy to use in the light gray environment. 5.A host can be equipped with 7 kinds of different impact device, automatic identification of impact device type. No need to re calibrate the replacement.   Main application 1.Installed mechanical or permanent assembly parts. 2.Heavy work piece. 3.Invalidation analysis of pressure vessel, steam turbine generator set and its equipment. 4.Test space is very narrow artifacts 5.Bearings and other parts. 6.Requires a formal original record of the test results. 7.Material distinction of metal materials. 8.Rapid test of multiple measurement sites in large scale workpiece. Working condition Working temperature: -10℃~+55℃; Storage temperature: -20℃~+75℃; The relative humidity is less than 90%; There is no vibration, no strong magnetic field, no corrosive medium and serious dust in the surrounding environment.   Product Details: Display All English display, menu operation, simple and convenient operation. OLED LCD screen, easy to use in any environment. Measurement function One host can be equipped with 7 different impact devices, no need to recalibrate when replacing, and automatically identify the type of impact device. Data storage It can store 48~350 groups (impact times 32~1) single measurement value, average value, measurement date, impact direction, number of times, material, hardness scale and other information. Alarm output The upper and lower limits of the hardness value can be set in advance, and the alarm will be automatically alarmed when the range is exceeded, which is convenient for users to test in batches. Calibration With indication software calibration function. Battery The power supply adopts 2 AA (No. 5) ordinary alkaline batteries, which can work continuously for no less than 100 hours. It has power-saving functions such as automatic sleep and automatic shutdown.

    Delivery in 7-10 days

    $199.00

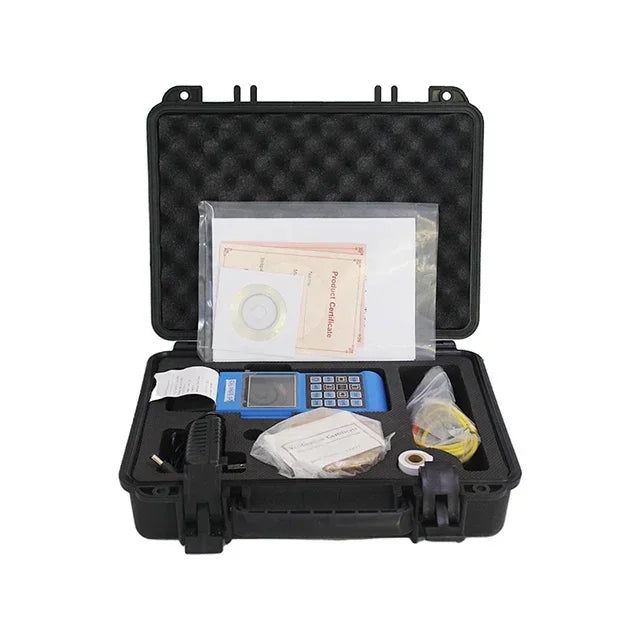

  • GOYOJO Portable Leeb Hardness Tester Kit

    GOYOJO Portable Leeb Hardness Tester Kit

    Delivery in 7-10 days

    Tip: 1. This Leeb hardness tester does not contain calibration blocks, you need to purchase calibration blocks locally. Thank you for your patronage! 2.This instrument is equipped with D-type sensor, which needs to measure the hardness of metal more than 5mm. D-type probe is a conventional probe, which is suitable for measuring most workpieces. Workpieces of special materials need to be equipped with other types of probes. 3.The three needle thread of the sensor has two colors of yellow and gray. Two colors of the line with random sensors, random delivery. Thank you for your support! Product Features: *Compact plastic case,suitable for use under poor working conditions. Test at any angle, even upside down. *Wide measuring range. It can measure the hardness of all metallic materials. Direct display of hardness scales HRB, HRC, HV, HB, HS, HL *Large screen (segment LCD), showing all functions and parameters. With EL background light. *Large capacity memory could store 100 groups information. *Datapro Software to connect with PC via USB port. *Software calibration function. Main Application: Die cavity of molds Bearings and other parts Failure analysis of pressure vessel, steam generator and other equipment Heavy work piece The installed machinery and permanently assembled parts. Testing surface of a small hollow space Material identification in the warehouse of metallic materials Rapid testing in large range and multi-measuring areas for large-scale work piece Technical Specifications: Measuring range:(170-960)HLD,(17-68.5)HRC,(19-651)HB,(80-976)HV,(30-100)HS,(59-85)HRA,(13-100)HRB Measuring direction:360° Hardness Scale:HL,HB,HRB,HRC,HRA,HV,HS Display: segment LCD Data memory: max. 100 groups(relative to impact times 32~1) Working voltage:2AA battery (not included) Continuous working period:about 100 hours(With backlight off) Communication interface:USB Standard Configuration : 1.Main unit----1, 2.D type impact device---1 With cable, 3.Cleaning brush (I)---1, 4.Small support ring---1, 5.Manual---1,

    Delivery in 7-10 days

    $145.83
