Description

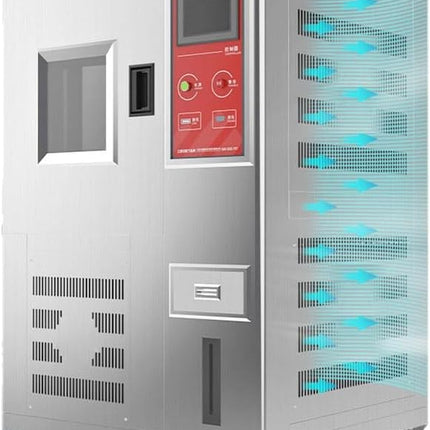

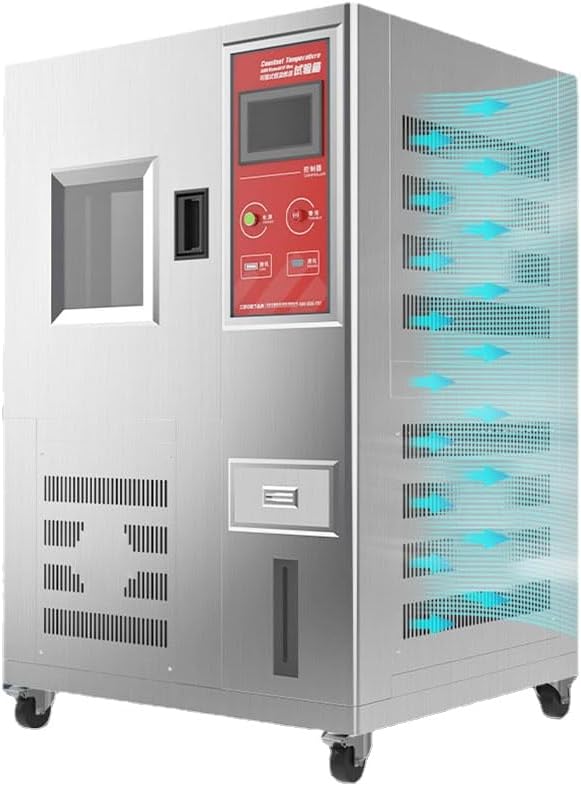

Model Name: HSG-150L D
Details
1,Volume: 150L
2,Inner box size: width 500mm × depth 500mm × height 600mm
3,Outline size: width 1010mm × depth 1130mm × height 1500mm
4,Weight: 300kg
5,Power supply: 110V/240V (Please contact us when placing an order for custom machine power requirements.)
Performance
1, test environmental conditions: ambient temperature 5℃～35℃, relative humidity ≤ 85%, no specimens in the test chamber conditions
2, test methods:
GB/T 5170.2-2008 temperature test equipment
GB/T 5170.5-2008 Humid heat test equipment
3, temperature range: -60-150 ℃
3, humidity range: 20% --- 98% humidity temperature (25 to 85 degrees can do humidity)
5, temperature fluctuation: ≤ 0.5 ℃ (Note: If the GB/T5170.2-1996, the fluctuation is ≤ ± 0.25 ℃)
6,Temperature deviation: ±2℃
7,Temperature uniformity: less than or equal to ± 2℃
8, temperature rise rate: 4 ℃ / min (average temperature rise rate)
9, cooling rate: 1 ℃ / min (average cooling rate)
10,Relative humidity deviation (only damp heat type): ±3.0%RH
11,Meet the test mode:
GB/T2423.1-2008(IEC60068-2-1:2007) Low temperature test method Ab
GB/T2423.2-2008(IEC60068-2-2:2007) High-temperature test method Bb
GJB150.4-1986 Low-temperature test
GJB150.3-1986 High temperature test
GB/T2423.3-2006(IEC60068-2-78:2007) Constant humidity and heat test method Cab
GB/T2423.4-2008(IEC60068-2-30:2005) Alternating damp heat test method Db
GJB150.9-1986 Damp heat test
