Description

How It Works:

When measuring surface roughness, the GOYOJO Surface Roughness Tester places the sensor on the surface and then uniformly slides it along the surface using the internal mechanism. The sensor captures surface roughness with its sharp built-in probe. This roughness causes displacement in the probe, leading to a change in the induction quantity of the induction coil, thereby generating an analog signal proportional to the surface roughness at the output of the phase-sensitive rectifier.

Specifications:

Display Resolution 0.001μm
Measurement Range: Ra 0.025-12.5μm
Ra, Rq 0.005-16μm
Rz, Ry, Rt, Rp, Rv, Rmax, R3z 0.02-160μm
RS, RSm 1mm
Rr 0-100% (9%Rt)
Rsk 0-100%
Range Options ±20μm, ±40μm, ±80μm
Filters RC, PC-RC, GAUSS, D-P
Sampling Lengths 0.25mm, 0.8mm, 2.5mm
Maximum Drive Travel 17.5mm (0.7 inches)
Minimum Drive Travel 1.3mm (0.052 inches)
Indication Error ≤10%
Variability in Indication ≤6%

Specifications:

Display 128X640 LED Dot Matrix (Self-illuminating)
External Interface USB
Power Source Built-in rechargeable lithium-ion battery or external power adapter
Dimensions 140 x 52 x 48(5.51 x 2.05 x 1.89 inches)
Weight 440g(0.97 pounds)

Sensor Performance Specifications:

Detection Principle Inductive
Probe Contact Force 4mN (0.4gf)
Probe Angle 90°
Probe Tip Radius 5μm
Guide Longitudinal Radius 45mm

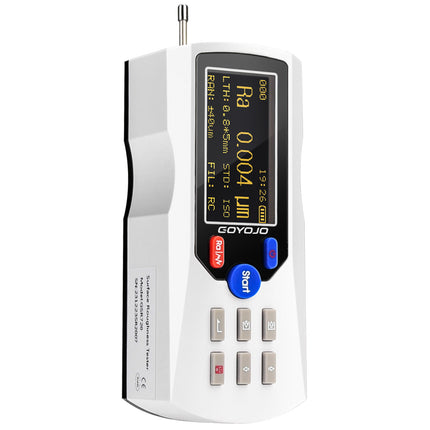

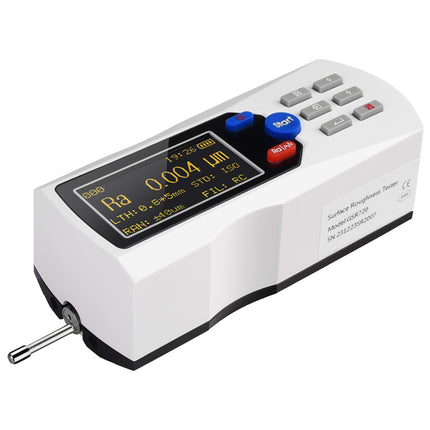

GOYOJO GSR720 Surface Roughness Tester - 0.001μm

Product form

How It Works: When measuring surface roughness, the GOYOJO Surface Roughness Tester places the sensor on the surface and then... Read more

Delivery in 7-15 days

$659.00

    • Guaranteed secure & safe checkout.

      stripe

    Description

    How It Works:

    When measuring surface roughness, the GOYOJO Surface Roughness Tester places the sensor on the surface and then uniformly slides it along the surface using the internal mechanism. The sensor captures surface roughness with its sharp built-in probe. This roughness causes displacement in the probe, leading to a change in the induction quantity of the induction coil, thereby generating an analog signal proportional to the surface roughness at the output of the phase-sensitive rectifier.

    Specifications:

    Display Resolution 0.001μm
    Measurement Range: Ra 0.025-12.5μm
    Ra, Rq 0.005-16μm
    Rz, Ry, Rt, Rp, Rv, Rmax, R3z 0.02-160μm
    RS, RSm 1mm
    Rr 0-100% (9%Rt)
    Rsk 0-100%
    Range Options ±20μm, ±40μm, ±80μm
    Filters RC, PC-RC, GAUSS, D-P
    Sampling Lengths 0.25mm, 0.8mm, 2.5mm
    Maximum Drive Travel 17.5mm (0.7 inches)
    Minimum Drive Travel 1.3mm (0.052 inches)
    Indication Error ≤10%
    Variability in Indication ≤6%

    Specifications:

    Display 128X640 LED Dot Matrix (Self-illuminating)
    External Interface USB
    Power Source Built-in rechargeable lithium-ion battery or external power adapter
    Dimensions 140 x 52 x 48(5.51 x 2.05 x 1.89 inches)
    Weight 440g(0.97 pounds)

    Sensor Performance Specifications:

    Detection Principle Inductive
    Probe Contact Force 4mN (0.4gf)
    Probe Angle 90°
    Probe Tip Radius 5μm
    Guide Longitudinal Radius 45mm
