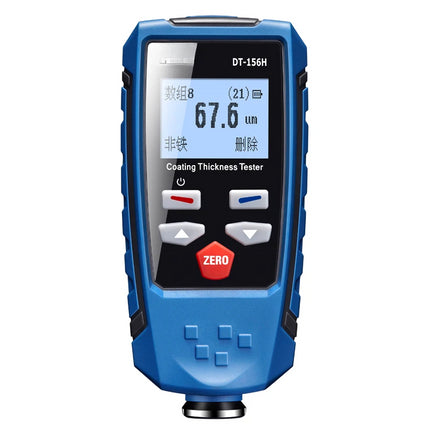

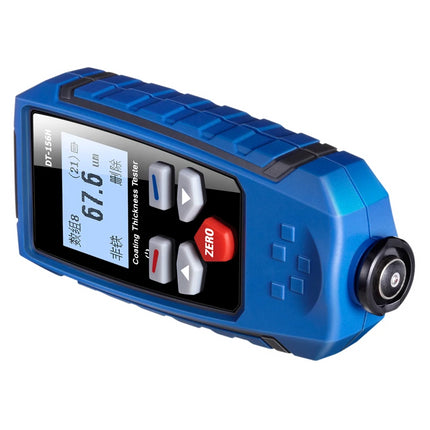

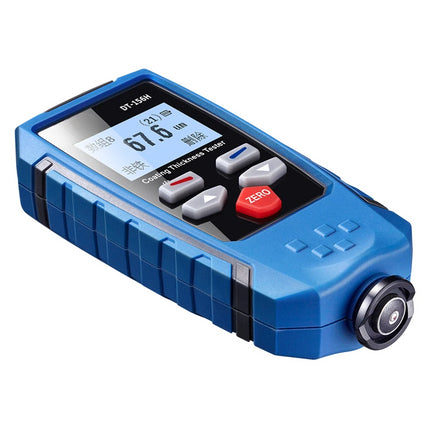

Coating Thickness Meter DT-156/156H
Dual Technology Features Automatic Selection of Magnetic Induction or Eddy Current Measurement Techniques
Non-magnetic coatings (e.g. paint, zinc) on steel
Insulating coatings (e.g. paint) on no-ferrous metals
No-ferrous metals coatings on insulating substrates
Menu operation system
Two working modes: DIRECT and GROUP mode
One point calibration, two points calibration and basic calibration easily
Delete single readings and all group readings easily
Low battery, error indication
Features |
DT-156 |
DT-156H |
Non-magnetic coatings (e.g. paint, zinc) on steel |
* |
* |
Insulating coatings (e.g. paint) on no-ferrous metals |
* |
* |
No-ferrous metals coatings on insulating substrates |
* |
* |
Menu operation system |
* |
* |
Two measuring modes: CONTINUE and SINGLE mode |
* |
|
Two working modes: DIRECT and GROUP mode |
* |
* |
Statistic Display: AVG, MAX, MIN, NO., S.DEV |
* |
|
One point calibration, two points calibration and basic calibration easily |
* |
* |
Memory for 400 readings (80 DIRECT and 320 GROUP readings) |
* |
|
Memory for 1500 readings ( 30 GROUP readings) |
|
* |
Delete single readings and all group readings easily |
* |
* |
High alarm and Low alarm for all working modes |
* |
|
Low battery, error indication |
* |
* |

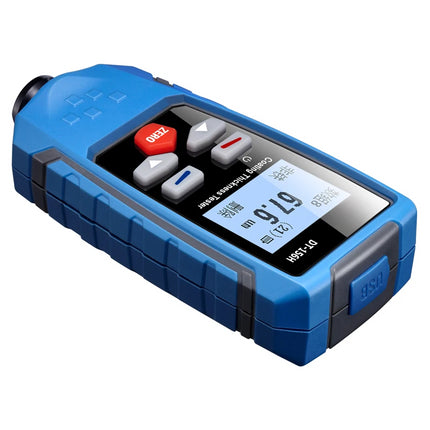

USB interface for PC software |
* |
* |
4 levels of battery indication |
|
* |
Error indication |
|
* |
Easily adapt to lighting conditions with 8 levels of backlight |
|
* |
Size (H x W x D): 113.5mm x 54mm x 27mm
Weight: 110g
Specifications |
DT-156 |
DT-156H |
Sensor probe |
F |
N |
F |
N |
Working principle |
magnetic induction |
Eddy current principle |
magnetic induction |
Eddy current principle |
Measuring range |
0~1250um |
0~1250um |
0~1350um |
0~1350um |
Guaranteed tolerance (of reading) |
(+/- 3%+1)um |
(+/- 3%+1.5)um |
(+/- 2.5%+2)um |
(+/- 2.5%+2)um |
Repeatability |
(+/- 1%+1)um |
(+/- 1%+1)um |
(+/- 1%+1)um |
(+/- 1%+1)um |
Low range Precision |
0.1um |
0.1um |
0.1um |
0.1um |
Minimum curvature radius |
1.5mm |
3mm |
1.5mm |
3mm |
Diameter of Minimum area |
7mm |
5mm |
7mm |
5mm |
Basic critical thickness |
0.5mm |
0.3mm |
0.5mm |
0.3mm |
