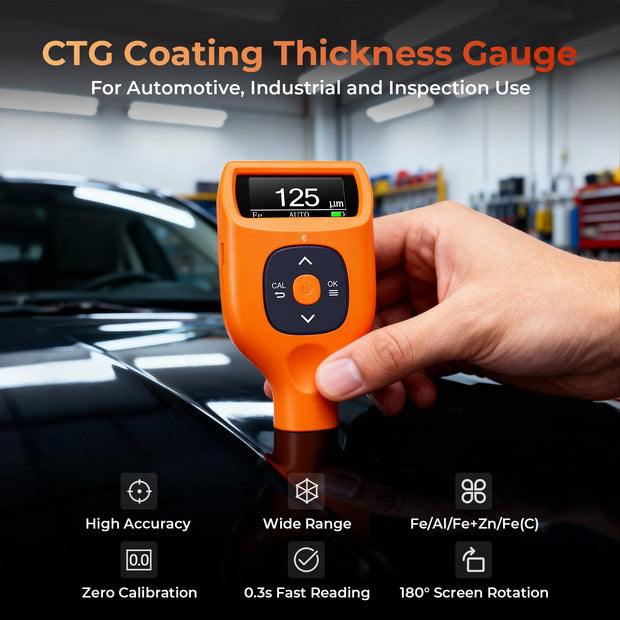

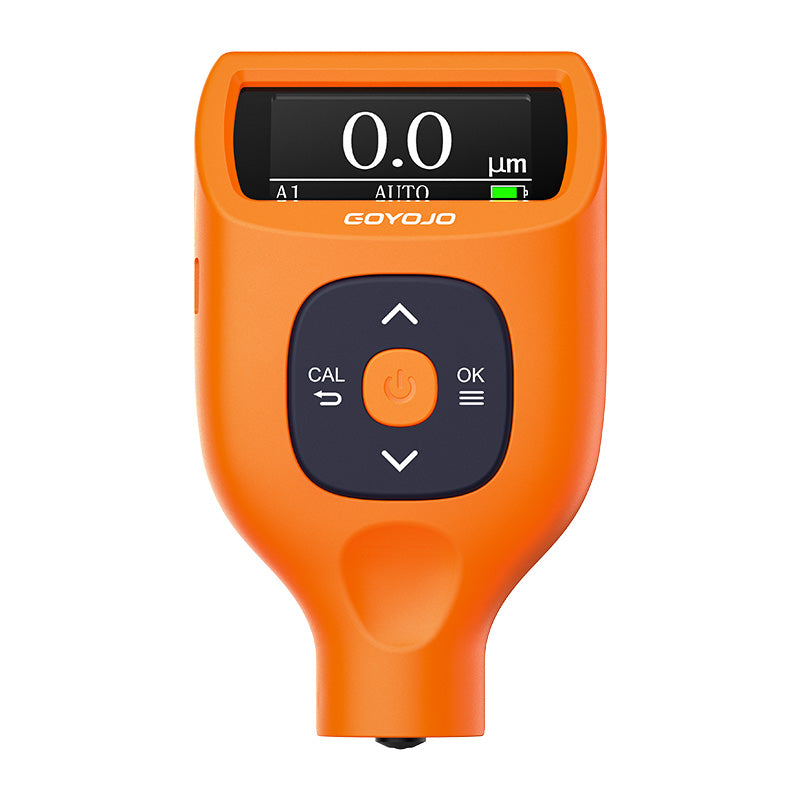

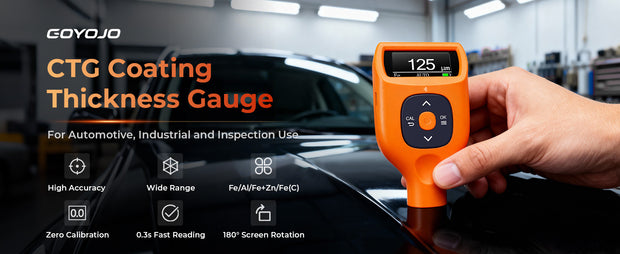

GOYOJO CTG Coating Thickness Gauge
The GOYOJO CTG Coating Thickness Gauge features advanced magnetic induction (Hall effect) and eddy current auto-switching technology, automatically identifying magnetic... Read more
- Professional Accuracy

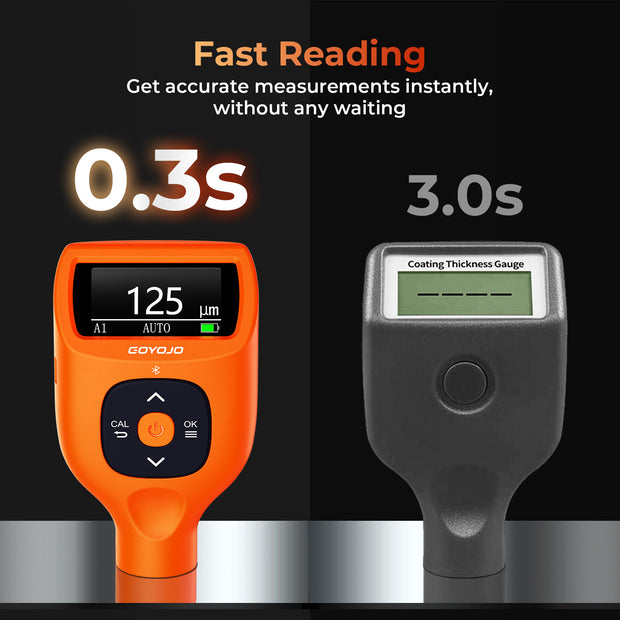

- 0.3s Fast Reading
- Zero Calibration
- Auto Substrate Recognition
- 180° Screen Rotation
SKU: AA30368
$69.00
-
Guaranteed secure & safe checkout.

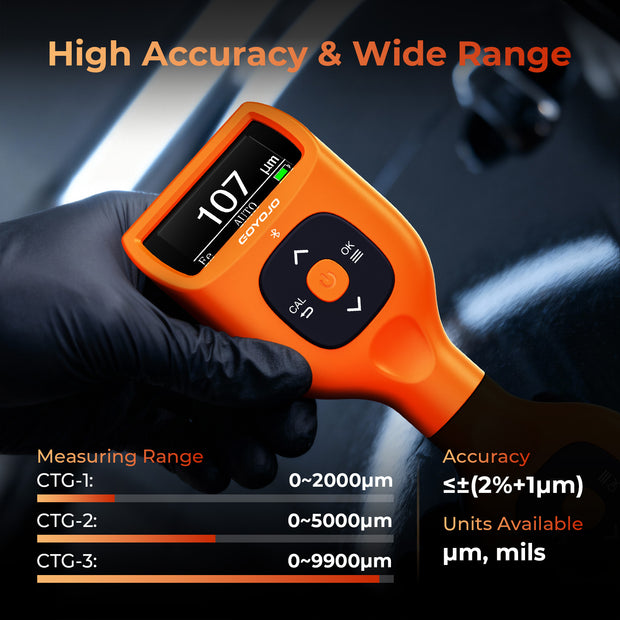

High Accuracy Measurement:
Equipped with a high-precision sensor, the GOYOJO CTG delivers reliable and repeatable results with an accuracy of ≤ ±(2% + 1μm), ensuring confidence in every measurement—ideal for professional inspection and quality control.

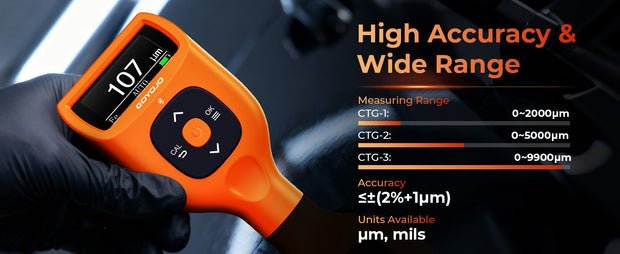

Wide Measuring Range Options:
Designed to meet different application needs, the CTG series offers multiple range configurations:
- CTG1: 0–2000 μm
- CTG2: 0–5000 μm
- CTG3: 0–9900 μm

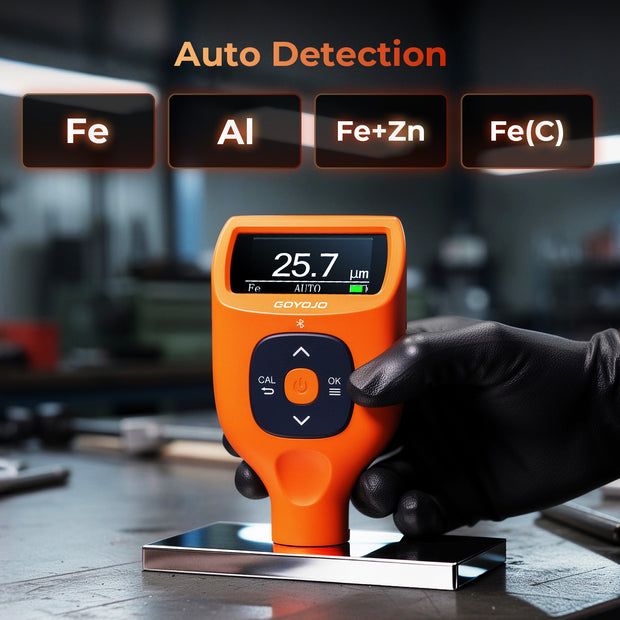

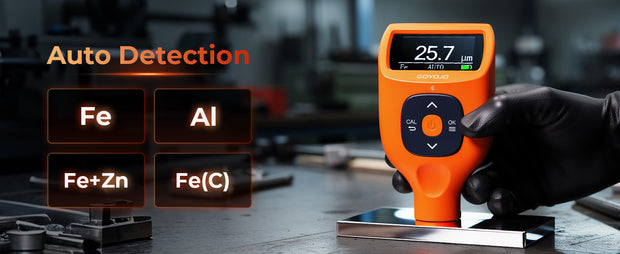

Auto Substrate Recognition:

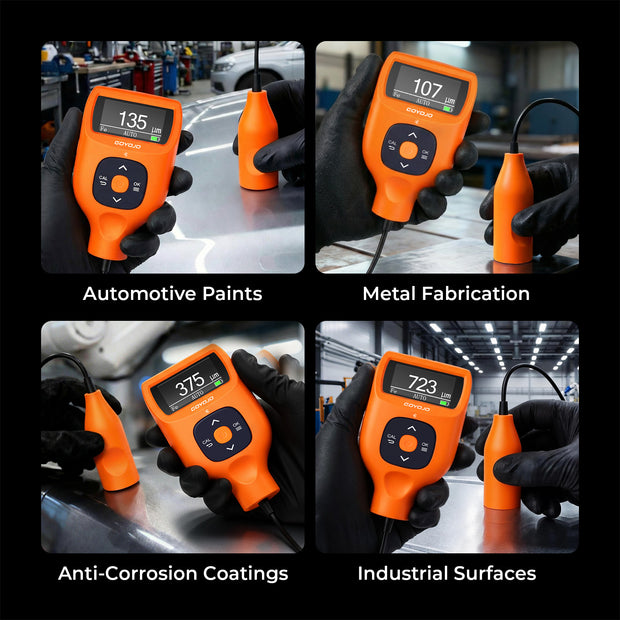

The GOYOJO CTG coating thickness gauge automatically identifies Fe / Al / Fe+Zn / Fe(C) substrates using advanced magnetic induction and eddy current technology. It accurately measures coatings on steel, aluminum, galvanized metal, and iron-based putty surfaces, ensuring reliable and consistent results across a wide range of automotive and industrial applications.
Orter Features:

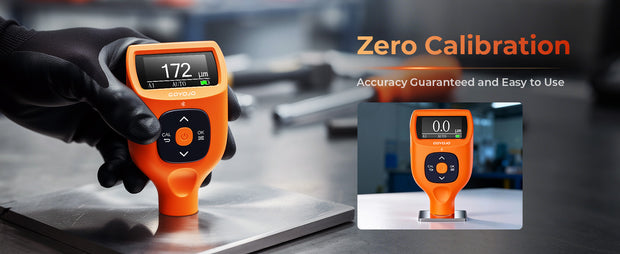

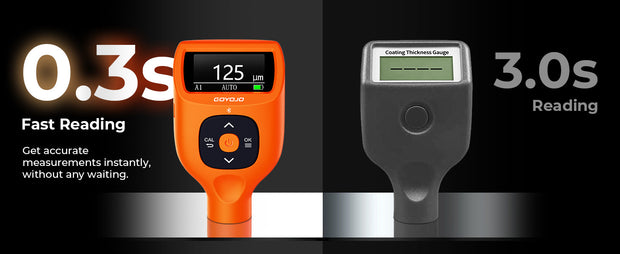

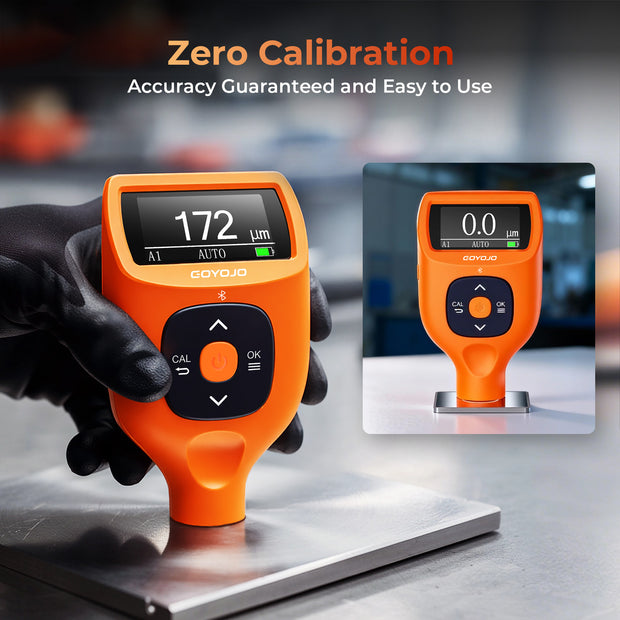

- Fast Continuous Measurement and Zero Calibration: Provides accurate readings in under 0.3 second with automatic continuous mode and convenient zero calibration for consistent accuracy. Ideal for car buyers, body shops and detailers using a car paint tester.

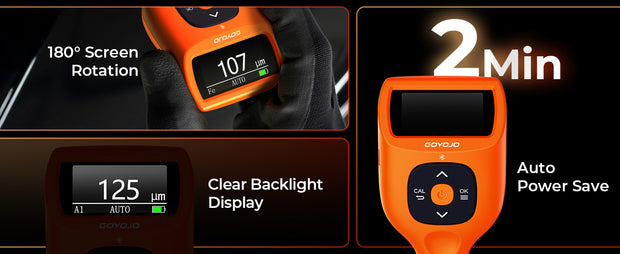

- 180° Screen Rotation: The auto-rotating display adapts to different measuring angles, providing clear visibility whether measuring overhead, vertically, or in tight spaces.
- Built-in Bluetooth with App Support (only for GTG2 & GTG3) : Search“GOYOJO CTG” on GooglePlay or the App Store to record measurements and generate inspection reports.

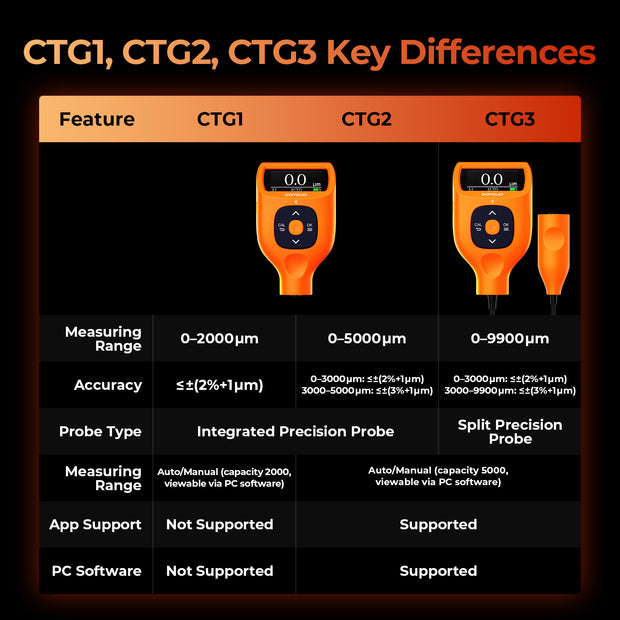

Parameter Specifications
| Feature | CTG1 | CTG2 | CTG3 |
|---|---|---|---|
| Measuring Range | 0–2000 μm | 0–5000 μm | 0–9900 μm |
| Accuracy | ≤ ±(2%+1 μm) |
0–3000 μm: ≤ ±(2%+1 μm)
3000–5000 μm: ≤ ±(3%+1 μm)
|
0–3000 μm: ≤ ±(2%+1 μm)
3000–9900 μm: ≤ ±(3%+1 μm)
|

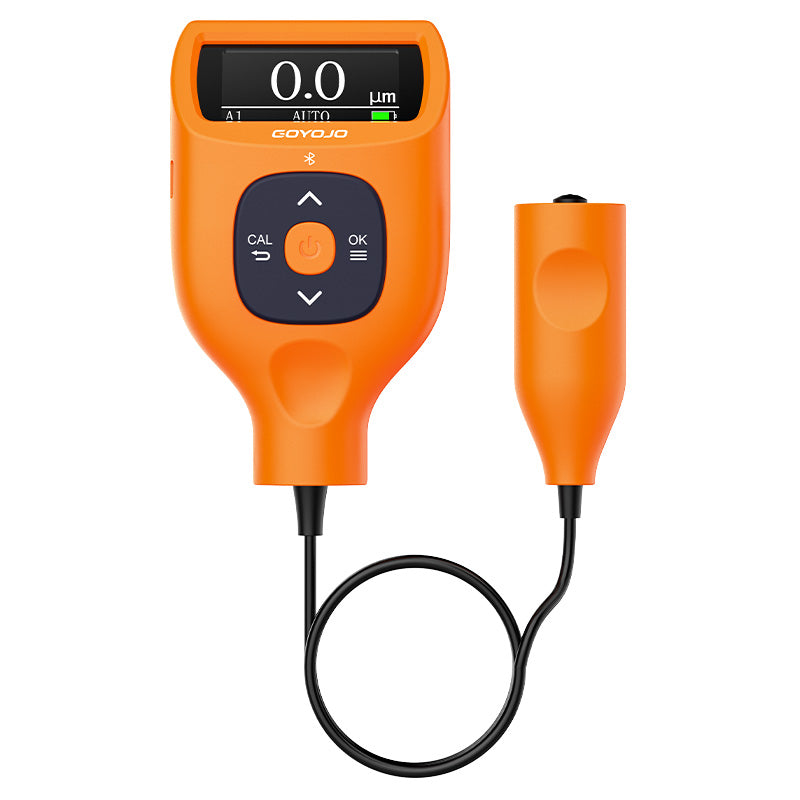

| Probe Type | Integrated Precision Probe | Integrated Precision Probe | Split Precision Probe |
| Data Storage | Auto/Manual (capacity 2000, viewable via PC software) | Auto/Manual (capacity 5000, viewable via PC software) | Auto/Manual (capacity 5000, viewable via PC software) |
| App Support | Not Supported | Supported | Supported |
| PC Software | Not Supported | Supported | Supported |
