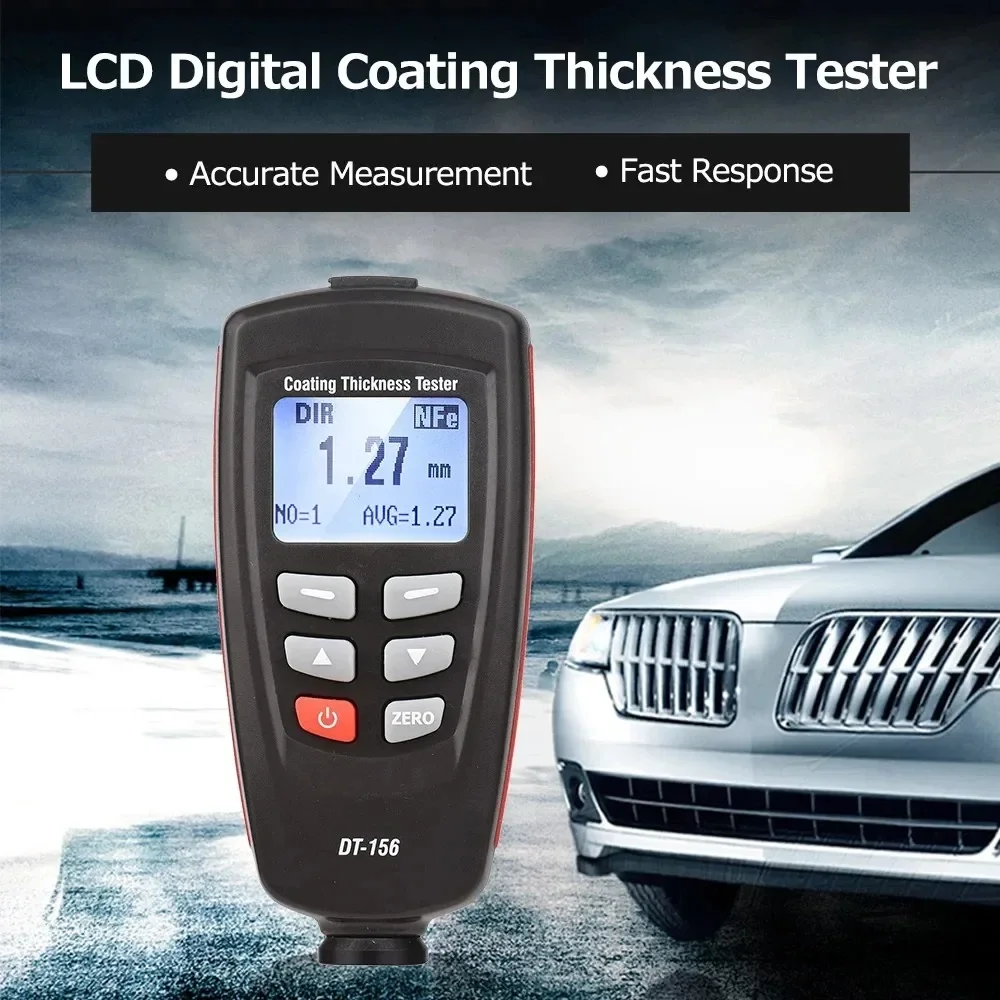

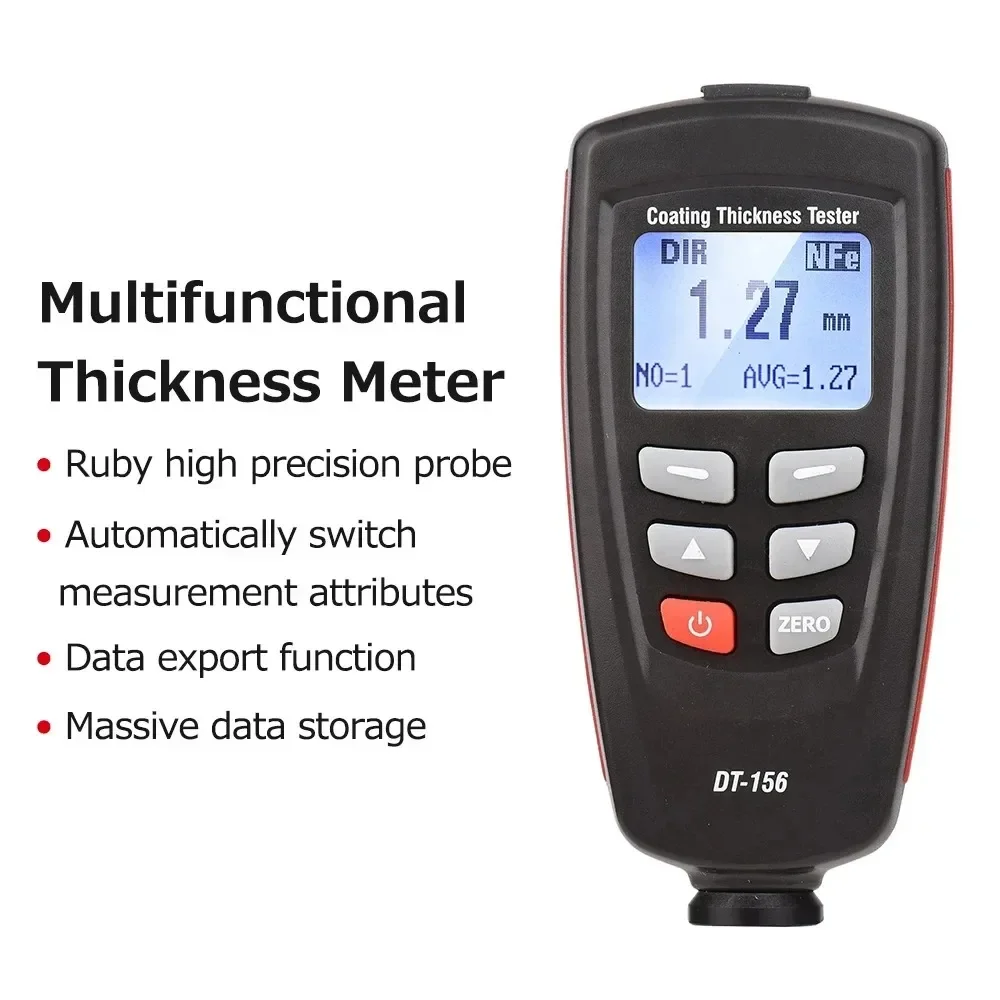

DT-156 Dual Technology Features Automatic Selection of Magnetic Induction or Eddy Current Measurement Techniques
Non-magnetic coatings (e.g. paint, zinc) on steel
Insulating coatings (e.g. paint) on no-ferrous metals
No-ferrous metals coatings on insulating substrates
Menu operation system
Two working modes: DIRECT and GROUP mode
One point calibration, two points calibration and basic calibration easily
Delete single readings and all group readings easily
Low battery, error indication
| Features |
DT-156 |
| Non-magnetic coatings (e.g. paint, zinc) on steel |
* |
| Insulating coatings (e.g. paint) on no-ferrous metals |
* |
| No-ferrous metals coatings on insulating substrates |
* |
| Menu operation system |
* |
| Two measuring modes: CONTINUE and SINGLE mode |
* |
| Two working modes: DIRECT and GROUP mode |
* |
| Statistic Display: AVG, MAX, MIN, NO., S.DEV |
* |

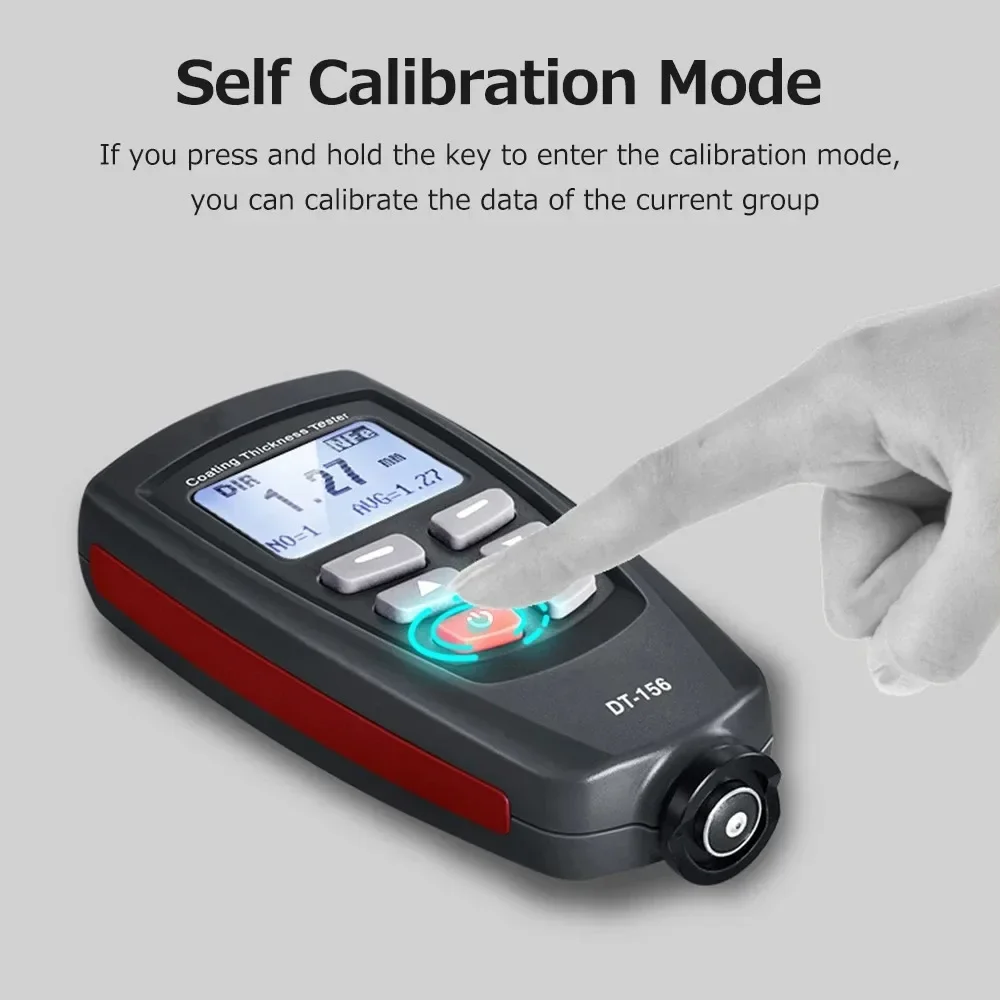

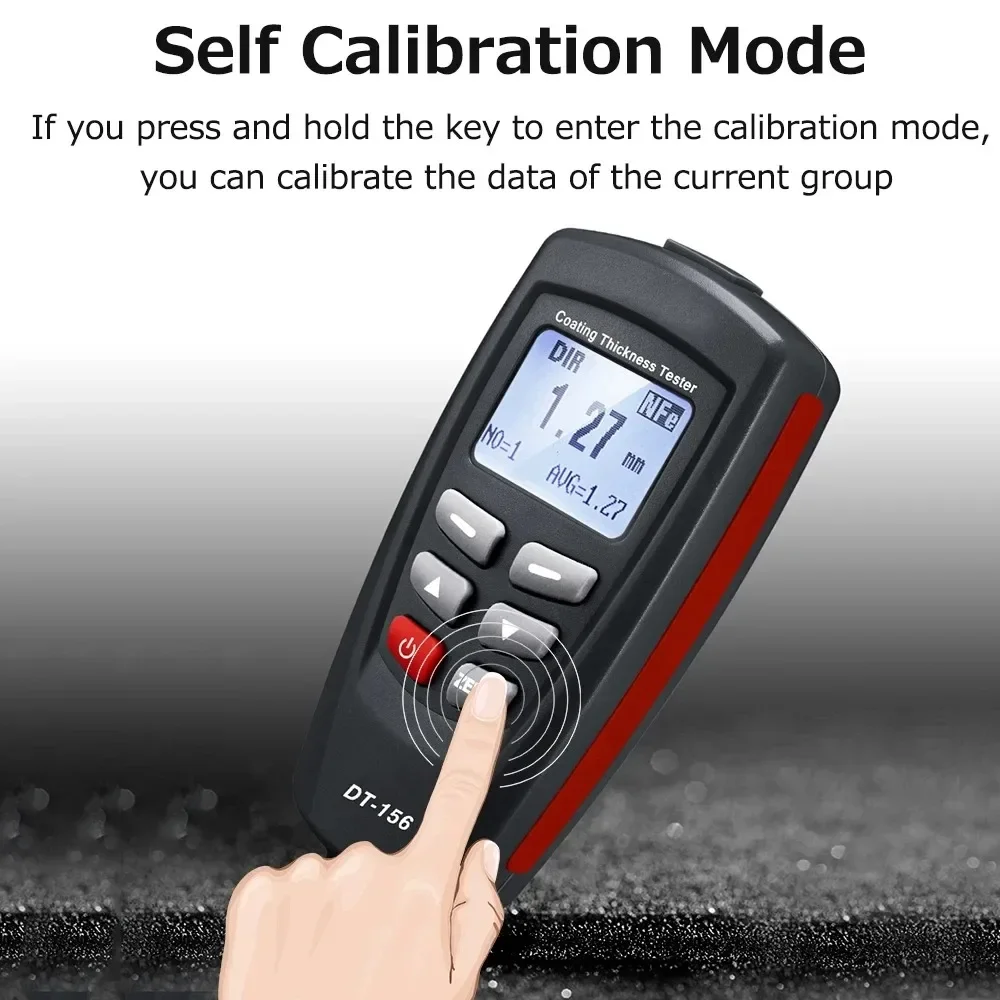

| One point calibration, two points calibration and basic calibration easily |
* |
| Memory for 400 readings (80 DIRECT and 320 GROUP readings) |
* |
| Delete single readings and all group readings easily |
* |
| High alarm and Low alarm for all working modes |
* |
| Low battery, error indication |
* |

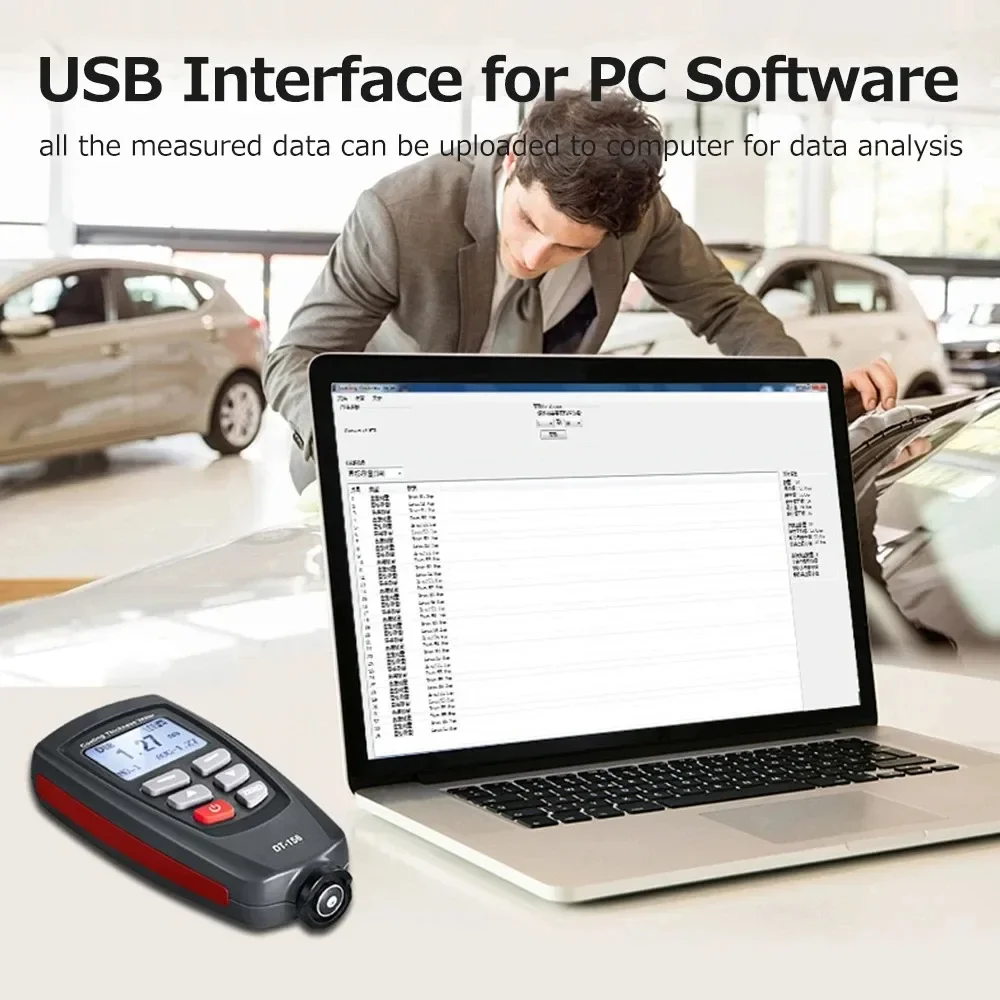

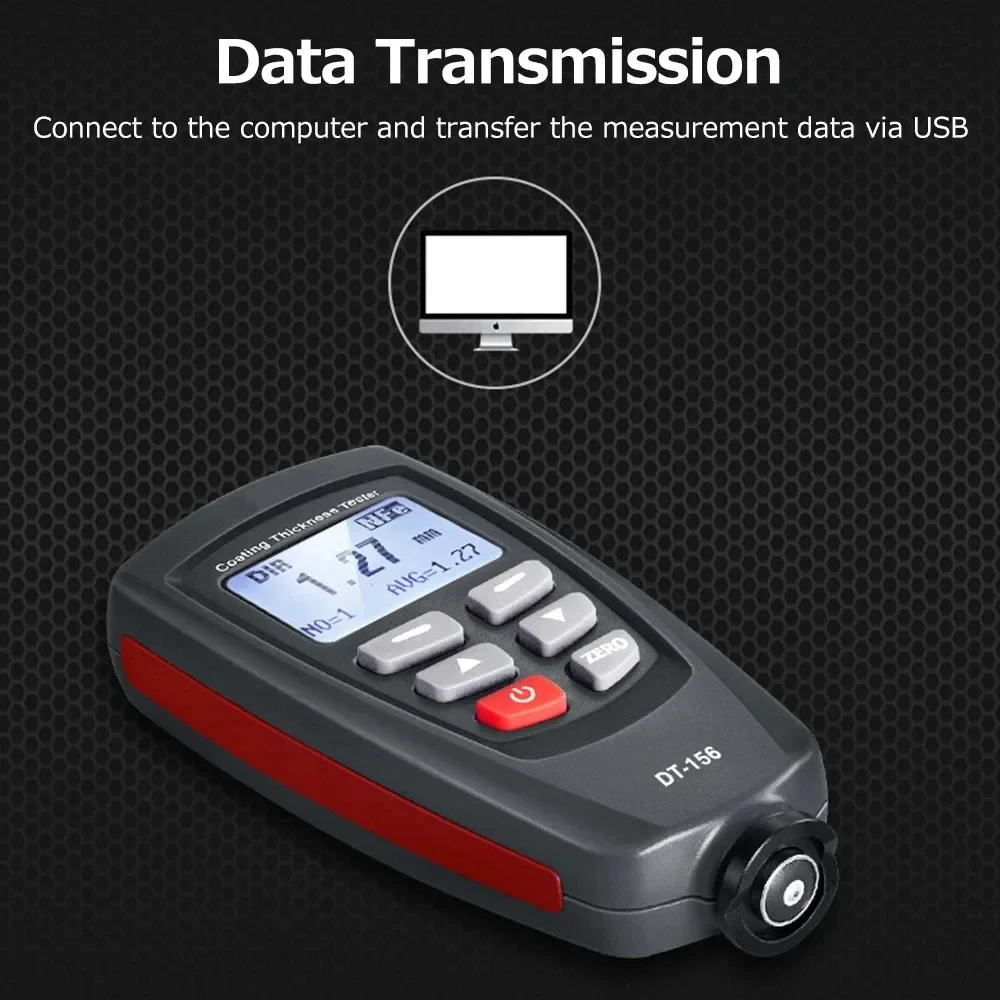

| USB interface for PC software |
* |
Size (H x W x D): 113.5mm x 54mm x 27mm
Weight: 110g
| Specifications |
DT-156 |
| Sensor probe |
F |
N |
| Working principle |
magnetic induction |
Eddy current principle |
| Measuring range |
0~1250um |
0~1250um |
| Guaranteed tolerance (of reading) |
(+/- 3%+1)um |
(+/- 3%+1.5)um |
| Repeatability |
(+/- 1%+1)um |
(+/- 1%+1)um |
| Low range Precision |
0.1um |
0.1um |
| Minimum curvature radius |
1.5mm |
3mm |
| Diameter of Minimum area |
7mm |
5mm |
| Basic critical thickness |
0.5mm |
0.3mm |
