Description



Product Description

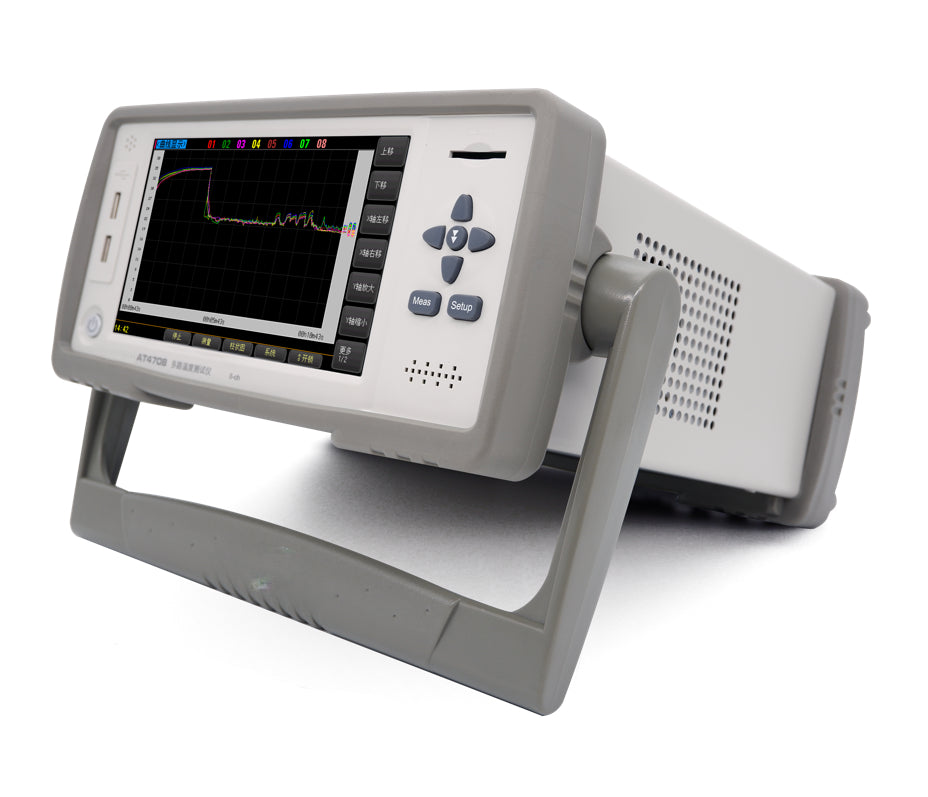

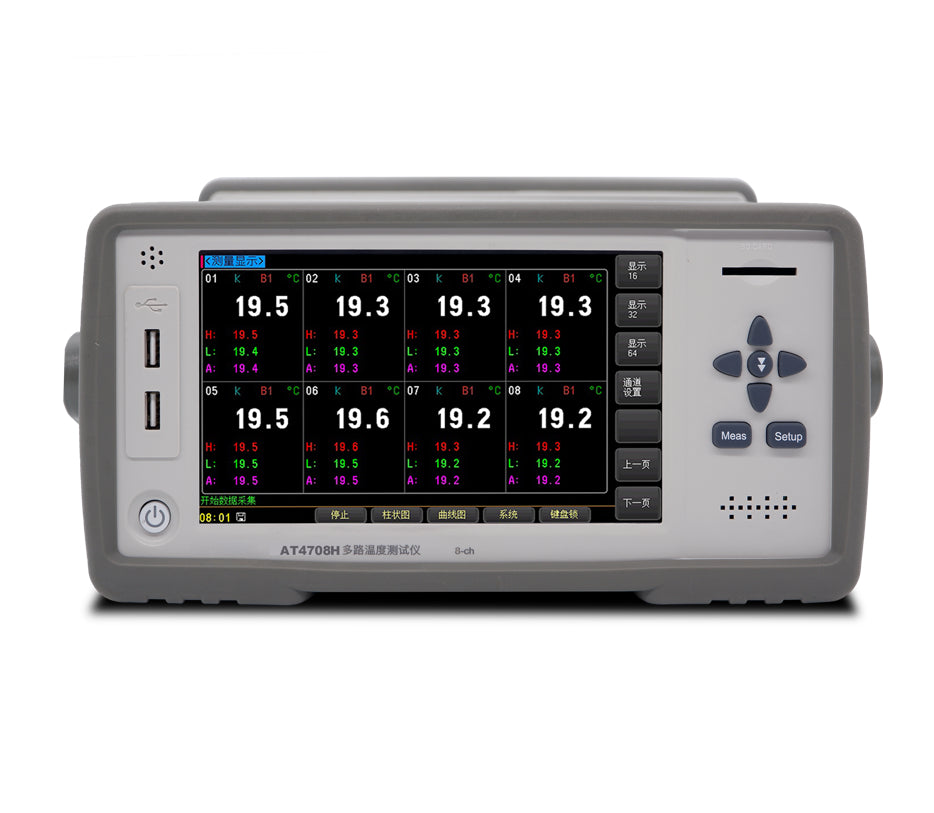

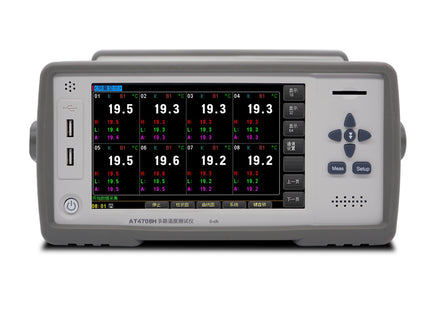

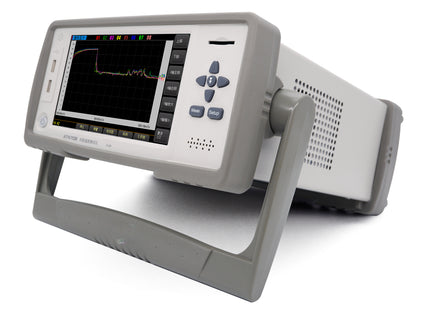

 AT47 series multi - channel temperature meter adopt high preformance ARM micro processor control with 7 inch color LCD display & touch screen.it's convinence to check temperature values, temperature variation curve,bar graph etc. can collection multi-channel temperature data at the same time, upper/lower beep and communication transport.



AT47 series can collection 64 channel temperature data, compatible with a various of temperature sensors, fast response, stable data, with broken thermocouple check function. each channel can set up separately and correction indepentdently. Instrument support RS-232 communication, can data collection, analysis and printing by software of computer.



Support USB disk storage, store sampling data on real time. user can correction each channel of data indepentdently.

Product Effects



Product parameter



SPECIFICATIONS
AT4708~64 series
Feature scan measurement,the insulation voltage
peak value is 350 between channels
graduation thermocouple:J/K/T/E/S/N/B/R
Accuracy ±0.2%±2 dgt ( not inculd thermocouple)
Range -200℃ ~1300℃
(varying depend on graduation)
Resolution 0.1℃
Channel AT4708 : 8 channel   AT4716 :16 channel    AT4724 :24 channel    AT4732 :32 channel   AT4740 :40 channel    AT4748 :48 channel     AT4756 :56 channel   AT4764 :64 channel
scan speed fast:500ms slow:1s
Adjustment each channel error correct
Comparator upper/lower
beep separately setting upper/lower value for each channel
Interface RS232C
U disc
Software ATS45 data collection software
Cold Junction Accuracy:0.5℃
Other TFT-LCD color display
broken thermocouple check function
histogram curve chart
upper limit value    lower limit value
average value display

Power supply Voltage:85VAC ~ 260VAC
 Frequency:50Hz/60Hz
Power:10VA
Sizes Weight 264 x112 x308.39mm
3kg

Accessories Thermocouple ( 2m/pcs)
 U disc
communication cable
Data collection sotware
Accessories



Packaging & Shipping



Certifications



Trade Shows





AT4708H Multi-Channel Thermometer & Data Logger

Product form

  Product Description  AT47 series multi - channel temperature meter adopt high preformance ARM micro processor control with 7 inch... Read more

Delivery in 7-10 days

$799.00
