Function

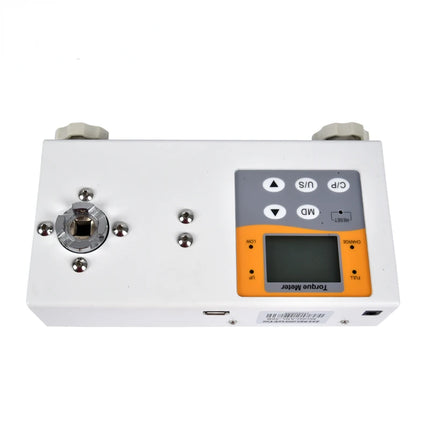

Digital torque meter is an intelligent multi-functional measuring instrument which is designed for testing various kinds of torque.
It main used in testing and calibration various kinds of electric pneumatic screwdriver set, the torque of torque wrench, all kinds of products refer to testing of screw down force, parts torsion destructive testing etc.
It's widely used in various kinds of electric, light industry, machinery manufacturing, research institutions, etc.

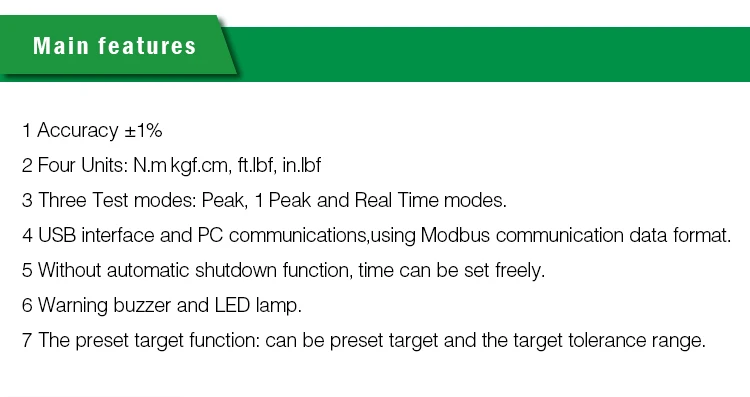

Main features
1 Accuracy ±1%
2 Four Units: N.m , kgf.cm, ft.lbf, in.lbf
3 Three Test modes: Peak, 1 Peak and Real Time modes.

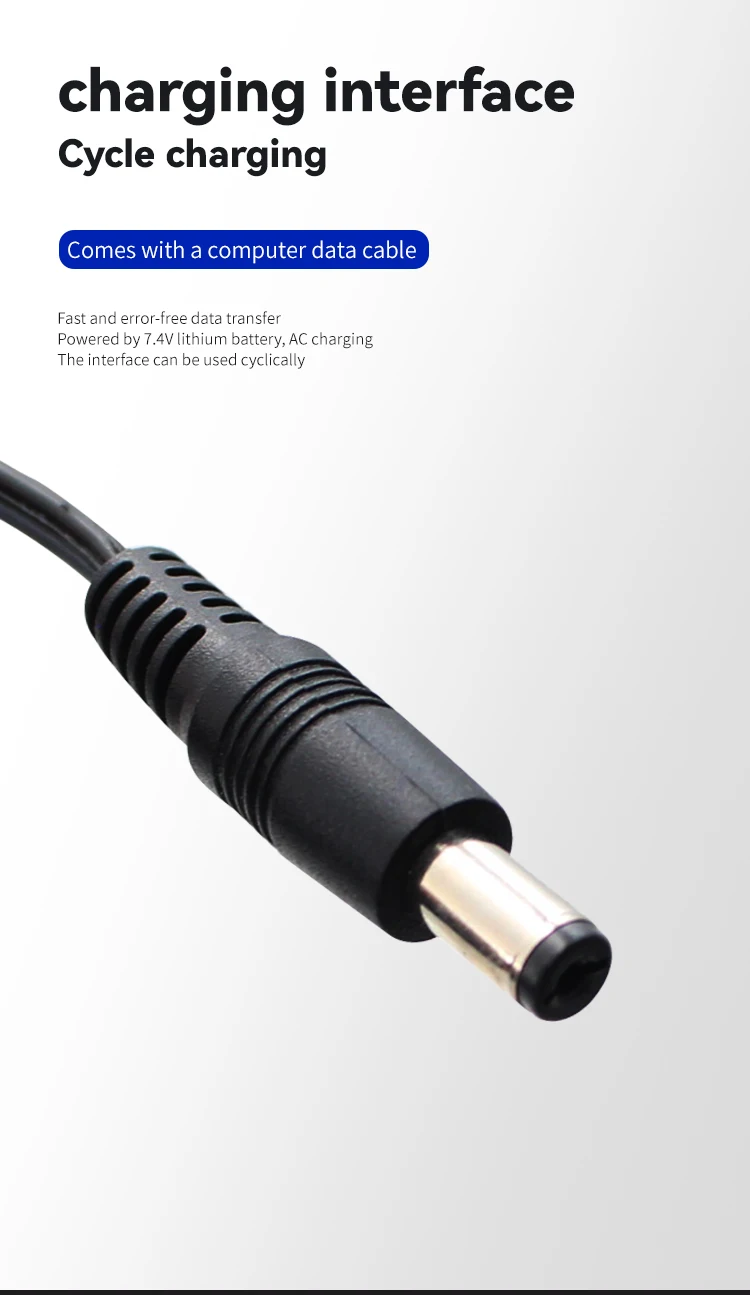

4 USB interface and PC communications,using Modbus communication data format.
5 Without automatic shutdown function, time can be set freely.
6 Warning buzzer and LED lamp.
7 The preset target function: can be preset target and the target tolerance range.
|
TYPES
|
UNIT
|
ANL-1B
|
ANL-2B
|
ANL-5B
|
ANL-10B
|
ANL-20B
|
|
Test range
|
N.m
|
0.1000~1.0000
|
0.200~2.000
|
0.500~5.000
|
1.000~10.000
|
2.00~20.00
|
|
kgf.cm
|
1.0197~10.197
|
2.039~20.39
|
5.098~50.98
|
10.197
~101.97
|
20.39~203.9
|
|
ft.lbf
|
0.07375~0.737
5
|
0.1475~1.475
|
0.3687~3.687
|
0.7375~7.375
|
1.475~14.75
|
|
in.lbf
|
0.8850~8.850
|
1.770~17.70
|
4.425~44.25
|
8.850~88.50
|
17.70~177.0
|
|
Division value
|
N.m
|
0.0001
|
0.001
|
0.001
|
0.001
|
0.01
|
|
kgf.cm
|
0.001
|
0.01
|
0.01
|
0.01
|
0.1
|
|
ft.lbf
|
0.0001
|
0.001
|
0.001
|
0.001
|
0.01
|
|
in.lbf
|
0.001
|
0.01
|
0.01
|
0.01
|
0.1
|
|
Accuracy
|
±1%
|
|
transfer
|
USB Transfer
|
|
Mode
|
First Peak/Real Time/Peak
|
|
Unit
|
N.m/kgf.cm/ft.lbf/in.lbf
|
|
Operating
Temper
|
5℃~40℃
|
