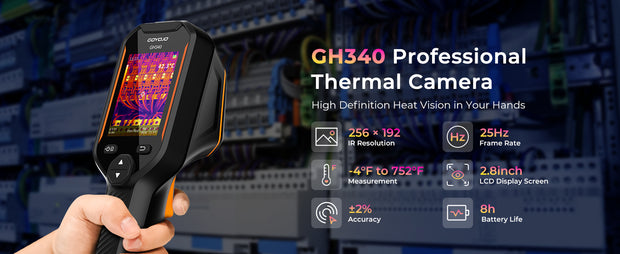

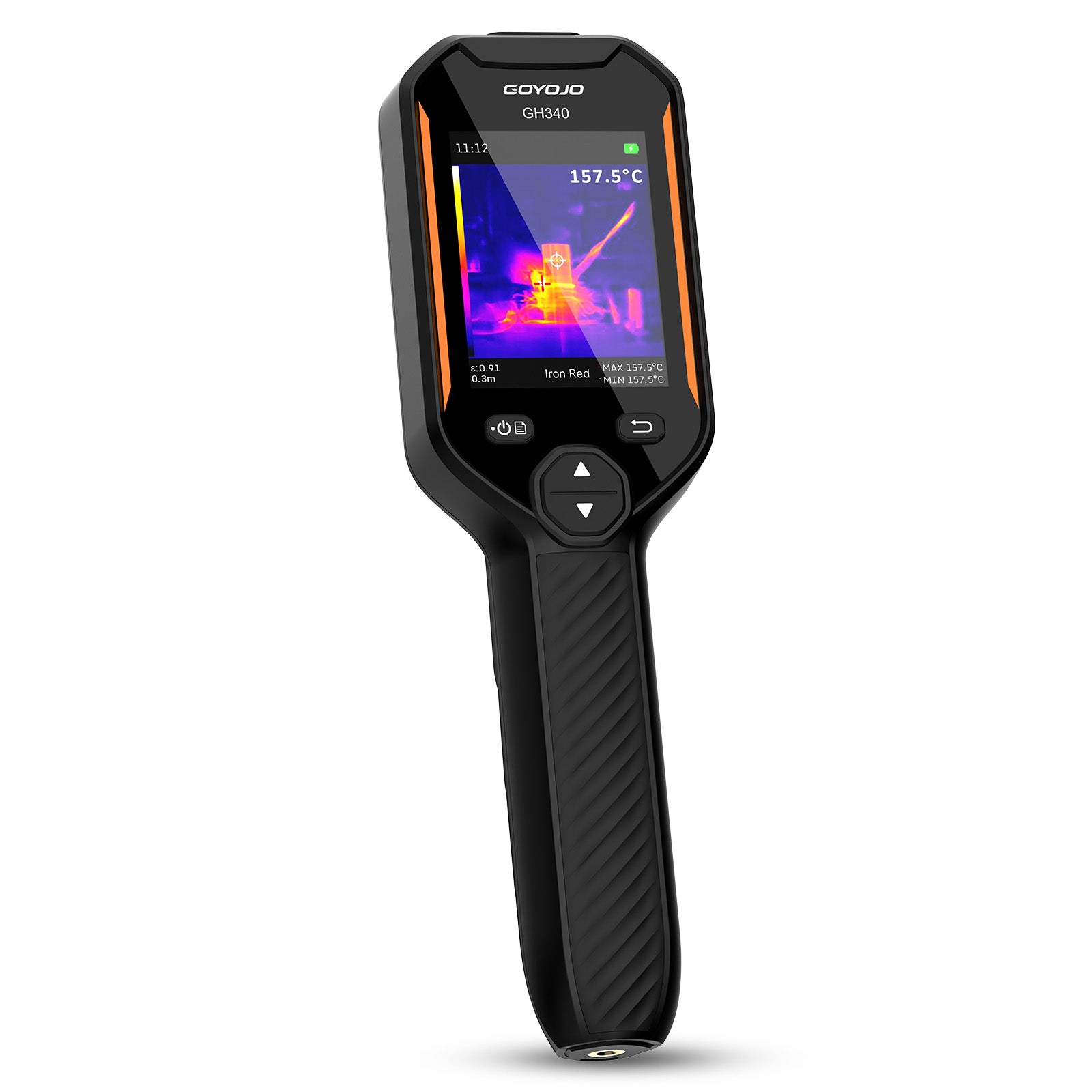

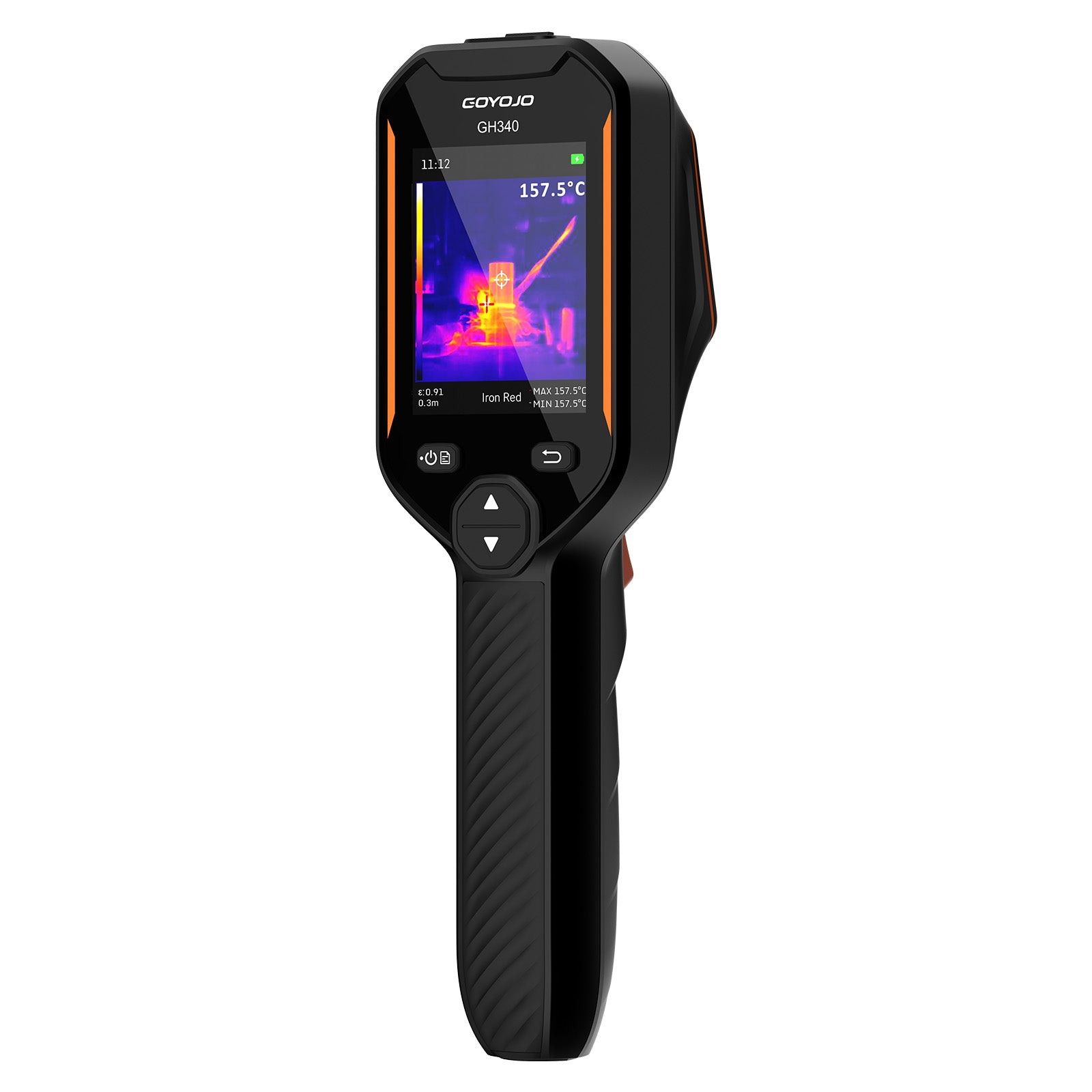

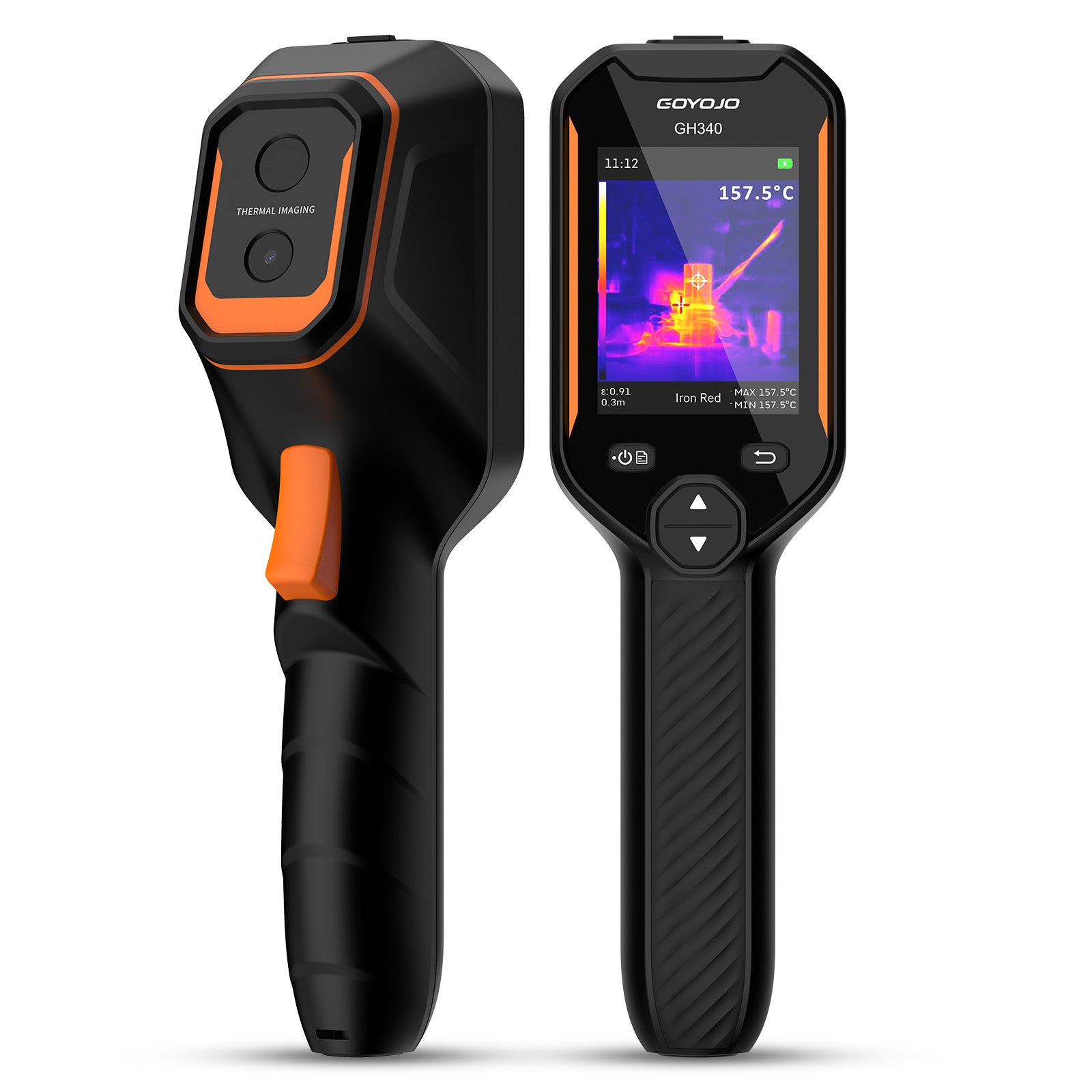

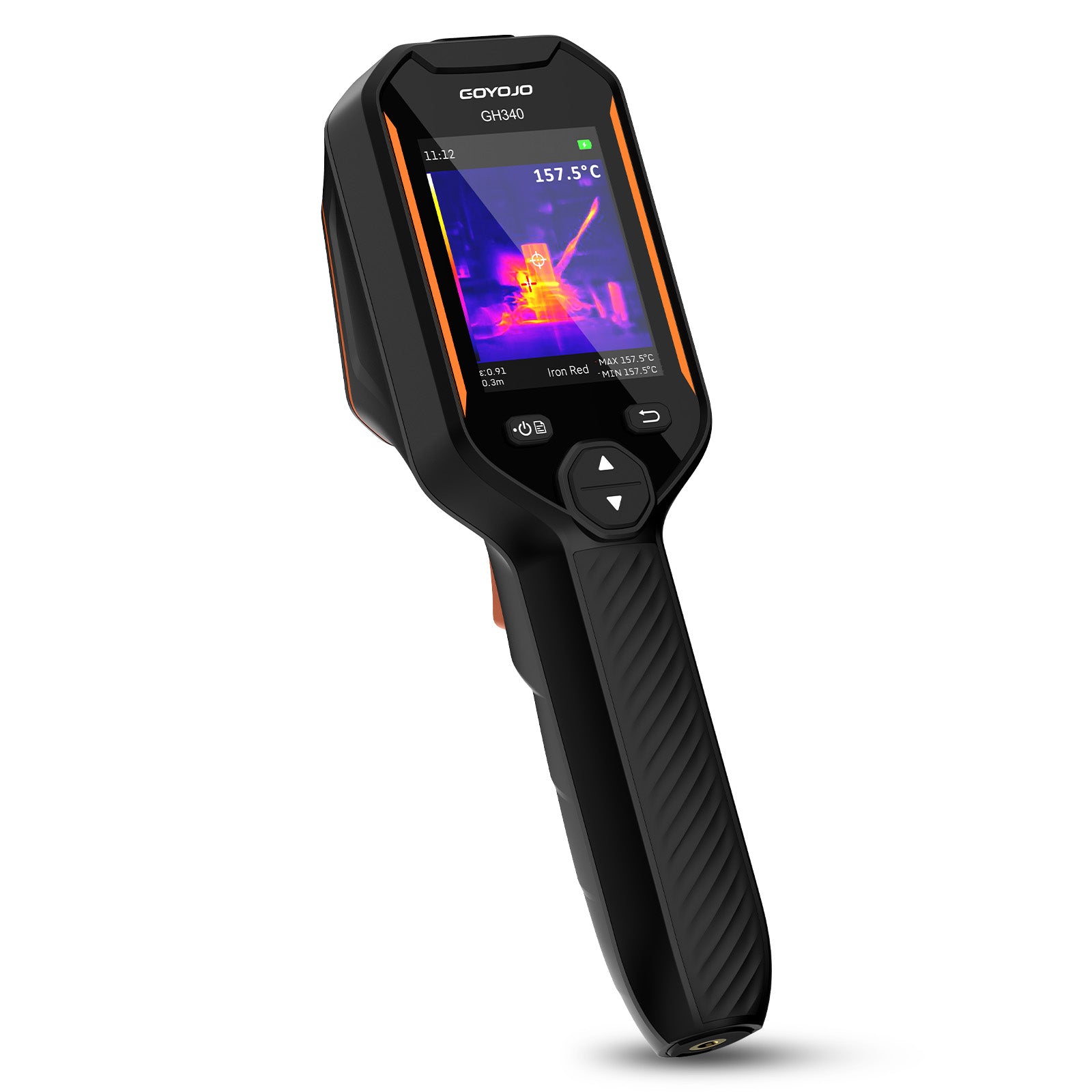

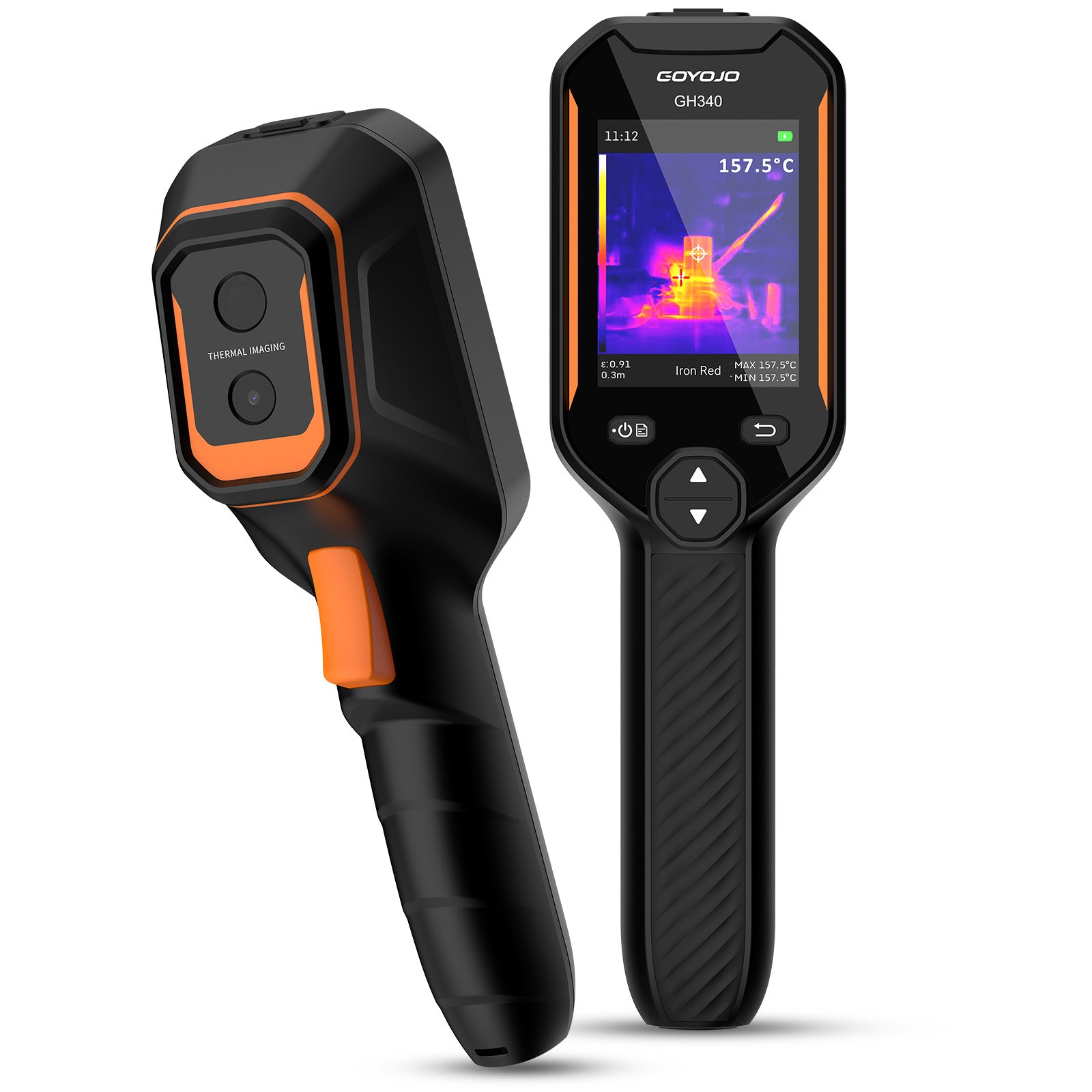

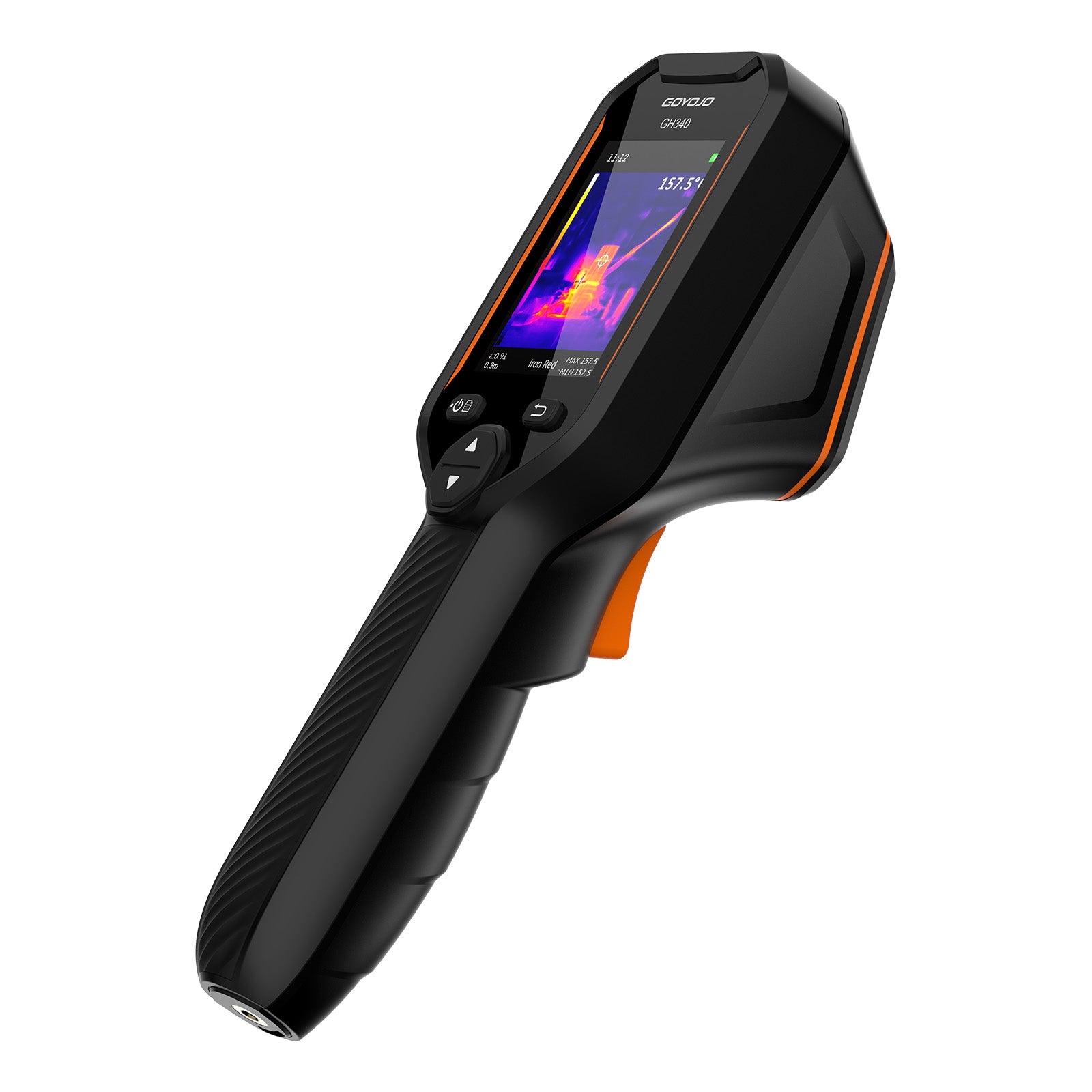

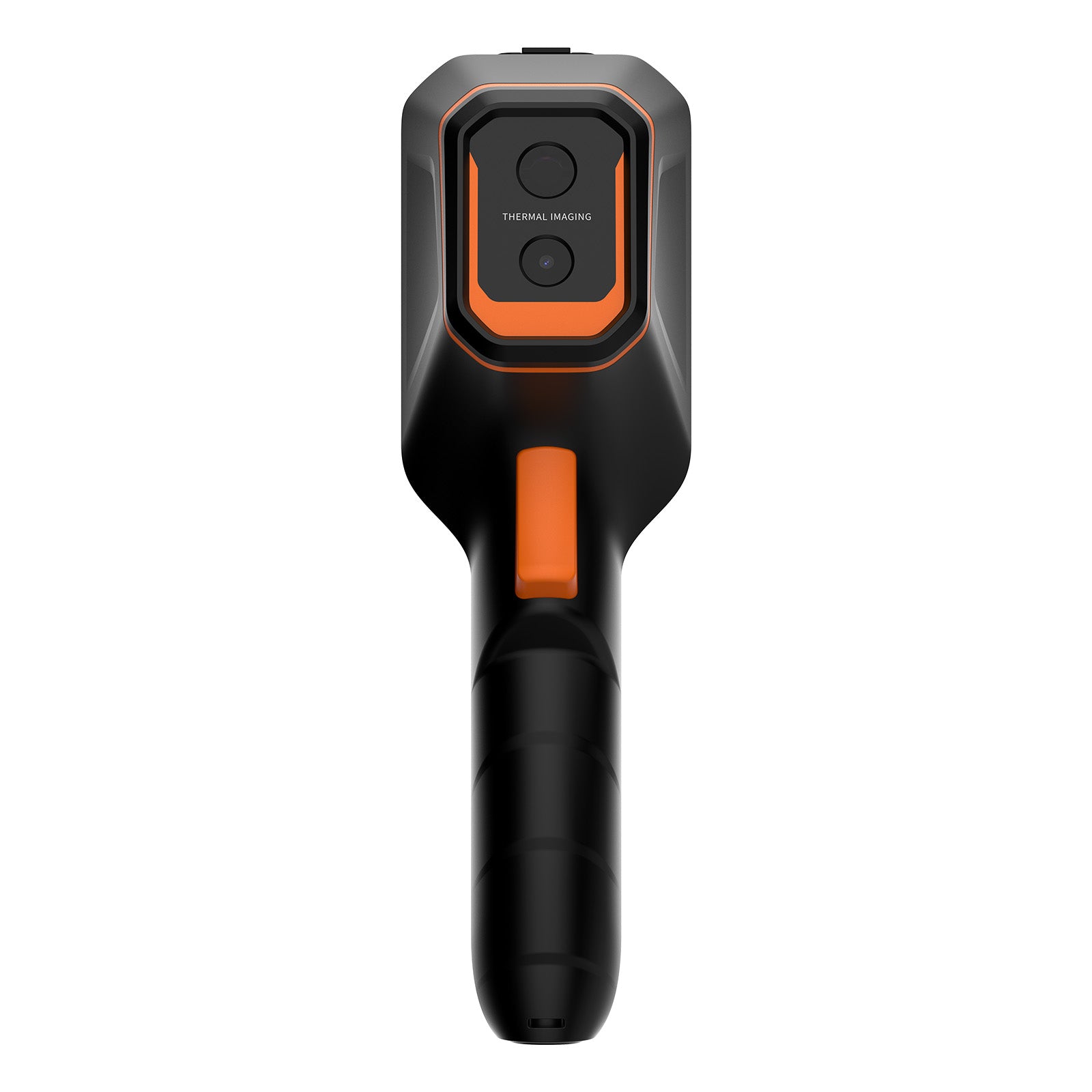

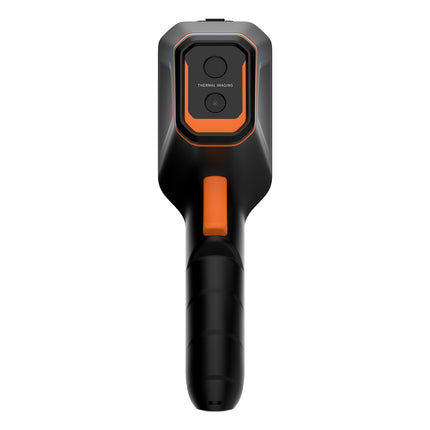

GOYOJO GH340 Handheld Thermal Imaging Camera
GOYOJO GH Series is suitable for building inspection, HVAC, and electrical applications.Thermal imaging, fusion, and visible light modes can meet... Read more
SKU: AA30435
$299.00 $265.00
-
Guaranteed secure & safe checkout.
Specifications-Infrared
| Parameter | Specification |
|---|---|
| Detector Type | Vanadium Oxide Uncooled Focal Plane Array |
| Super Infrared Resolution | GH192: 240*240 |
| Resolution | GH192: 9696 / GH340: 256192 |
| Die Size | 12μm |
| Frame Rate | 25HZ |
| NETD, mK | GH192: ≤50 mK@25°C, F/1.0 GH340: ≤40 mK@25°C, F/1.0 |
| FOV | GH192: 56.8° * 56.8° GH340: 50° * 37.2° |
| IFOV | GH192: 8.89mrad GH340: 3.3mrad |
Temperature Measurement
| Parameter | Specification |
|---|---|
| Temperature Measurement Range | -20°C~550°C (Level A: -20°C~150°C / Level B: 100°C~550°C) |
| Temperature Measurement Accuracy | ±2°C or 2% of the reading, whichever is higher |
| Temperature Measurement Distance | 0.1m~50m |
| Emissivity | Default 0.95; refer to the table for emissivity adjustments |
| Temperature Measurement Features | Center point temperature, automatic high/low temperature |
| Temperature Measurement Alarm | Yes |
| Adjustable Smart Temperature Detection Range | Yes |
| Smart Temperature Highlight | Yes |
| Temperature Measurement Modes | Thermal imaging / Fusion / Visible light |
| Palette | 6, White hot / Black hot / Iron Red / Rainbow / Red hot / Fusion |
